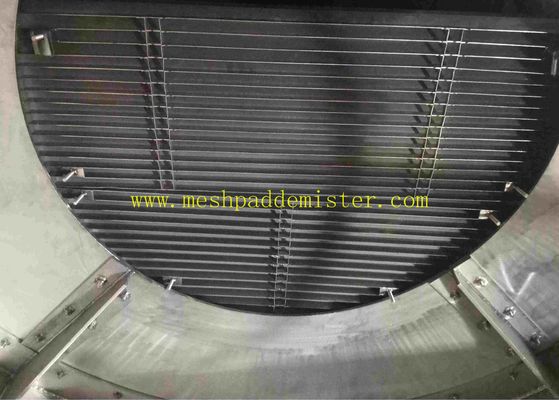

Large Image :  Salt Evaporator Use Vane Pack Mist Eliminator 2205 Material

Product Details:
Place of Origin: China
Certification: ISO9001-2015
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negociation
Packaging Details: Pallet, wooden box
Delivery Time: 5-9 days
Payment Terms: L/C, T/T
Supply Ability: 699 pcs per month

Salt Evaporator Use Vane Pack Mist Eliminator 2205 Material

Description
Material: 2205 Grids: Ribs
Pitch Of Vane: 20mm, 25mm, 30mm, Etc. Shape: Round, Or As Per Order
Vane Type: As Per Order Sections: According To Manway
High Light:

2205 Vane Pack Mist Eliminator

,

Vane Pack Mist Eliminator 2205

,

salt evaporator Vane Pack Mist Eliminator



Salt evaporator use vane pack mist eliminator 2205 material





1. Vane Pack mist eliminator datasheet:



data sheet of demister
1. Project No.:
2. Equipment name   Vane demister
3. Quantity In use quantity 1
  Spare parts quantity 0
  Total quantity 1
4. Purpose

Removal of slurry droplets in FGD emission

And control the dust emission concentration at the outlet of absorption tower

5. Basic design conditions
  1) Characteristics of flue gas
  (1) Name of flue gas   Flue gas after dust removal and desulfurization
  (2) Flue gas flow at absorber inlet m3/h 31000
  (3) Dust concentration at absorber inlet mg/Nm3 ≤20(Standard state dry basis,3%O2)
  Flue gas flow at absorber outlet m3/h 32500
  Flue gas velocity m/s 2.0
  (4) Outlet temperature of absorption tower 45
  (5) pressure kPa・G 1.0
  (6) Expected flue gas composition   See Table 1
  (7) 预期浆滴成分
  H2O (liquid) wt% ~95
  Na2S (solid) wt% 4
  Na2HS (solid) wt% 1
  Droplet characteristics
  Density kg/m3 ~1020
  PH 7~10
  Viscosity cPa <3
  2) Type of demister   As per order
  3) Installation position   Upper part of absorber
6. Structural design conditions
  1) Standards, specifications   As per order
  2) Design pressure of absorber kPa·G -1.0~+5.0
  9) Design temperature(maximum temperature and time of mist eliminator)   Depends on material
  Shell ℃/min
  demister ℃/min
  3) Corrosion allowance
  4) Shell size of demister Inner diameter of absorption section of absorption tower Φ 2.6m
  5) texture of material

  • Absorber shell


  • Demister body
304, 316L, 2205, 2507, TA2, etc.

  • Flushing nozzle


  • Internal flushing pipe fittings


  • Internal support







2. Vane pack mist eliminator working process:



when the gas containing mist flows through the vane pack mist eliminator at a certain speed, because of the inertial impact of the gas, the mist and wave plate collide and are attached to the wave plate surface. The multi fold structure of the wave plate of the mist eliminator increases the chance of catching and gathering the mist, and the undeleted mist will catch and gather at the next turn through the same function, so it will work repeatedly, thus greatly improving the efficiency of mist eliminator. After the gas passes through the chevron mist eliminator, there is basically no mist.



3. Vane pack mist eliminator structure:



The vane pack mist eliminator consists of a set of chevron corrugated plates with well defined geometry. It is very popular and useful internals for gas liquid separation applications. These plates according to design and shape can remove the droplets more than 8 microns.

Hualai factory has been producing a range of vane pack mist eliminators for critical applications in industrial use. Standard Material of vane type mist eliminator is polypropylene & stainless steel.



4. Advantages of Hualai vane pack mist eliminator / chevron plate demister:

  • Experience:

Mist droplets are thrown out of the gas by multiple gentle angles, minimizing disruptive eddies at the corners. Metal plates are held by equal-space slotted frames. We care about the details for each application.

  • High quality:

When you walk on the finished vane pack mist eliminator, you can feel its strength and stiffness. Thicker plates resist fluttering and last longer in corrosive and erosive service. It requires little maintenance after installation in the vessels.

  • Lower Pressure Drop:

Gentle angles of the plate means lower pressure drop than those with sharp corners and drainage hooks. It makes great difference especially in some applications such as vacuum towers.

  • Higher Efficiency:

Less turbulence around the corners also means minimal re-entrainment of liquid draining down the plates.

Usually for droplets with diameter 20 microns and larger, the removal efficiency is over 90%; and for 40-micron and larger droplets, the removal efficiency can be 99.9%.

  • More Throughput:

It allows higher gas velocity than mesh pad demister without losing efficiency due to re-entrainment.

  • Materials to Suit Your Process:

The most common construction materials are carbon steel and 304 and 316 stainless steel. But we understand your corrosion requirements and can provide other alloys or nonmetallic construction as per order.

  • Hooked Plates for Special Applications:

For PP material, vane plates with small hook is available for option. And for stainless steel material, vanes can be welded with short extensions hooks from one or more corners. That style is preferred by some users to help prevent re-entrainment of liquid.



5. Vane Pack Mist Eliminator Cases:



Salt Evaporator Use Vane Pack Mist Eliminator 2205 Material 0



Removal of very small droplets can be achieved using a two stage mist eliminator by fitting a mesh pad to the upstream face of the unit to coalesce droplets as small as 4 to 5 microns into droplets in the size range which are easily removed by the vane separator.
