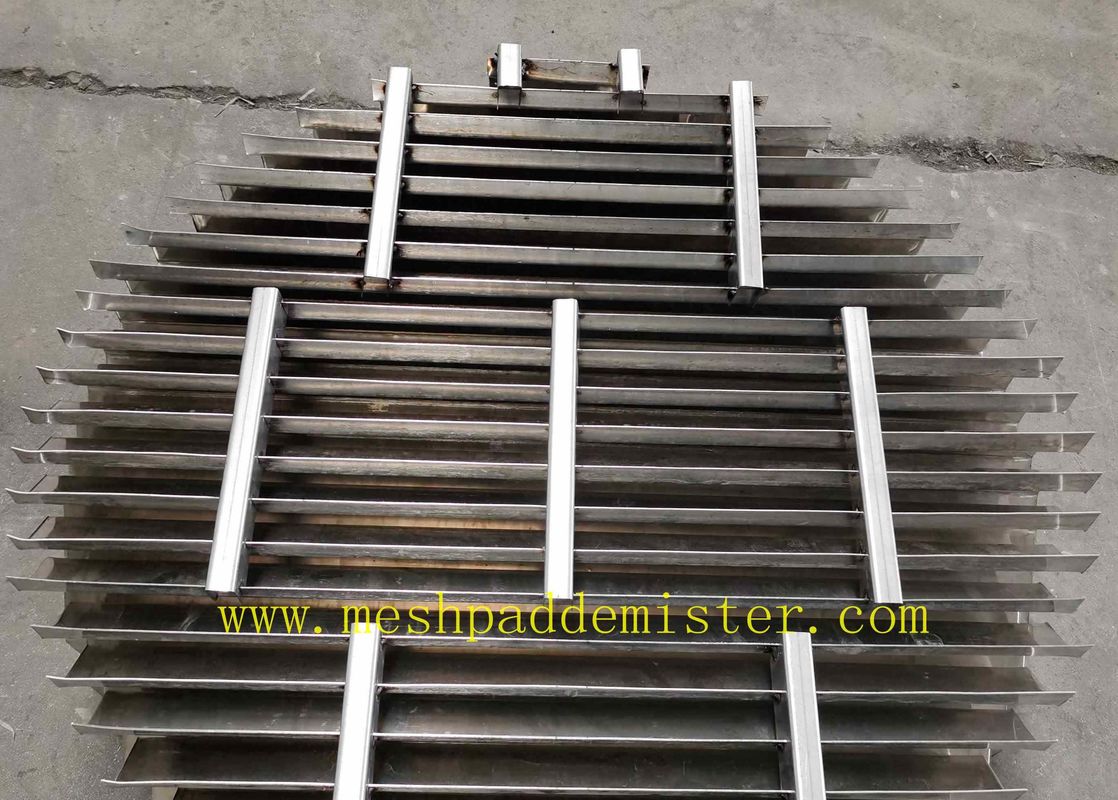

Absorber Tower 170mm Vane Pack Chevron Demister Mesh

Description
Materieal: 304, 316L, Etc. Pitch Of Vane: As Per Design
Vane Type: 170mm Vane Size: As Per Order
Hook: Optional Feature: Anti Corrosion
High Light:

vane pack chevron demister

,

absorber tower chevron demister

,

170mm vane demister mesh



Absorber Tower Vane Pack Demister design and manufacturing





1. Absorber demister in Hualai factory,



This technical specification is applicable to absorber demister, including the technical requirements for the functional design, structure, performance, manufacture, installation, supply, commissioning and test of the body and auxiliary equipment system of two-stage high-efficiency flat demister.

We will make it in strict accordance with the drawings provided by the customer and meet the technical requirements on the drawings. Any modification or change to the drawings must be approved by the customer.



2. Technical characteristics of vane pack demister:



Unique design, without dead angle of demisting in the whole tower, triangle installation form, good stability, unique angle design. Hook on the chevron plate is an option, to gain droplet collection acceleration, and improve separation efficiency.



3. Design technical parameters of vane pack mist eliminator:



No. Item Unit Data
1 Absorber (case)
1.1 Diameter of front passage of demister m Φ2.6
1.2 Raw flue gas flow of single tower (wet) m3/h 31000
1.3 Net flue gas flow of single tower (wet) Nm3/h 32500
1.4 Net flue gas temperature 45
1.5 Average velocity of flue gas before demister m/s ≤2
1.6 Spray mode of absorption tower downward downward
1.7 Absorber nozzle type   Hollow cone
1.8 Average droplet size(D32) μm 2000
1.9 Flue gas temperature: normal operation / design 45/80
1.10 Cl-concentration ppm <40000
2 Demister data
2.1 First stage vane plate demister
2.1.1 Type
2.1.2 Material
2.1.3 Weight kg
2.2 Second stage vane plate demister
2.2.1 Type
2.2.2 Material
2.2.3 Weight kg
2.3 Liquid holding capacity of flue gas at demister outlet (dry, standard state) mg/Nm3
2.4 Pressure drop (two stage plate) Pa <150
2.5 Material of demister
2.6 Spray pipe material
2.7 Total weight of spray pipe kg
2.8 Nozzle material
2.9 Nozzle pressure drop bar
2.10 Number of nozzles pc
2.11 Nozzle unit weight kg
3 Flushing water volume Fill in by 100%
3.1 Upper part of the first stage m3/(h·m2)
3.2 Lower part of the first stage m3/(h·m2)
3.3 Upper part of the second stage m3/(h·m2)
3.4 Lower part of the second stage m3/(h·m2)

4. Vane Plate Parameters for Absorber Demister:



1. Height of the first stage vane plate: 170mm,

         plate thickness: 3mm; pitch of vane 30mm;

         Vane plate shape: streamline 2-channel.

2. Height of the first stage vane plate: 170mm,

         plate thickness: 3mm; pitch of vane 25mm;

         Vane plate shape: streamline 2-channel; hook in the middle of plate is an option.

3. Molding process: extrusion molding



5. Various types of custom order vane pack mist eliminator types



Absorber Tower 170mm Vane Pack Chevron Demister Mesh 0



Flue gas desulphurization industry is becoming more and more important as we pay more attention and effort to the environmental protection all over the world. In Hualai we produce vane pack demister mist eliminators for years, we are expecting to make more contributions to this global action. Welcome your contact anytime!
