Product Details:
Place of Origin: China
Certification: ISO9001-2015
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 999 pcs per month

With Screen Grids And Bracket Side Access Air Filter Mesh Pad Demister

Description
Size: 1495mm*1040mm Material: SS304
Product Name: Air Filter Demister Sections: No Sections; Whole

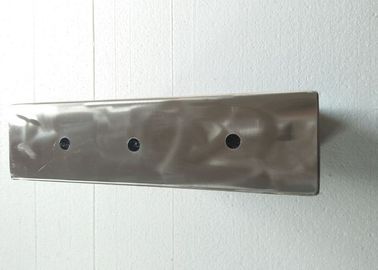

Application: Ventilation System Bracket: Stainless Steel Plate
High Light:

wire mesh pad

,

wire mesh mist eliminator

With Screen Grids And Bracket Side Access Air Filter Mesh Pad Demister



1. Air Filter Mesh Pad Demister:

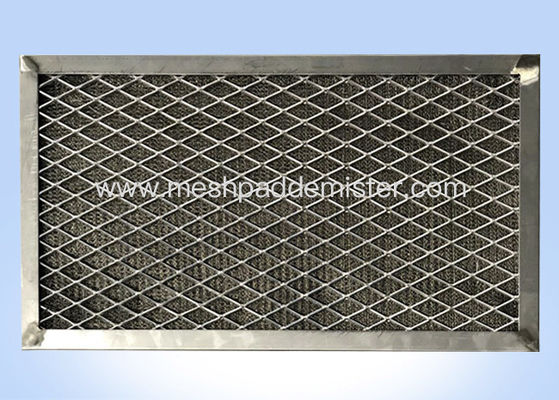

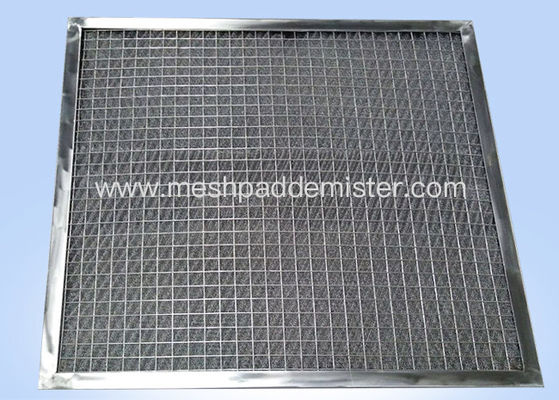

In this case, the mesh pad demisters are going to be used in ventilation system for a painting room. The bracketed structure are special designed for easy replacement and maintenance. The screen grids can be crimped mesh, welded mesh, and expanded mesh, also. It is usually in the same stainless steel material.

2. Air Filter Mesh Pad Demister Specifications in this case:



Item Value Unit
Material SS 304 /
Shape & Size 1495*1040 mm
Mesh Thickness 150 mm
Demsiter Height 150 mm
Wire Diameter 0.28 mm
Mesh Density 144 kg/m3
Void Fraction 0.982 /
Specific Area 260 m2/m3
Grids screen mesh and stainless plate /


3. How does a air filter mesh pad demister pad work?

(1)A vapor stream carrying entrained liquid droplets passes through a demister pad. The vapor moves freely through the knitted mesh.
(2)The inertia of the droplets causes them to contact the wire surfaces and coalesce.
(3)The large, coalesced droplets formed in the mesh ultimately drain and drop to the vessel bottom.


With Screen Grids And Bracket Side Access Air Filter Mesh Pad Demister 0

4. Air filter mesh pad demister Efficiency:

When properly designed demister pads can give efficiency up to 99.9% with minimal pressure drop. Normally demister pads can remove droplets down to 5 microns and lower with a free volume of up to 99% and a surface area of up to 1940 m2/m3. Due to high value of free volume the pressure drop across the demister pad is sufficiently low in most applications.

5. air filter mesh pad mist eliminator benefits:

  • Low cost
  • Practical solution
  • Low pressure drop
  • Simplified maintenance
  • Problem solving results
  • Tailored to meet client specifications
  • Guaranteed high performance efficiency


6. Material used in air filter mesh pad demister construction:

Mesh and grids may be made from most metals and plastics i.e. SS304, 304L, 316, 316L, Monel, Nickel, Copper, P.T.F.E., H.D.P.E., P.P. etc. and other metals, alloys or plastic which can be drawn or extruded.

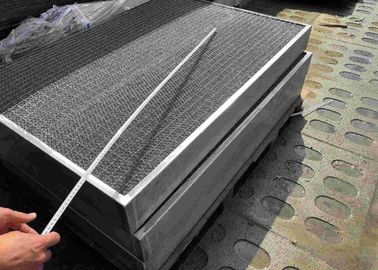

7. Air filter mesh pad demister package & shipping:


With Screen Grids And Bracket Side Access Air Filter Mesh Pad Demister 1

Welcome your inquiry with any questions! Here in we are always ready to be helpful!
