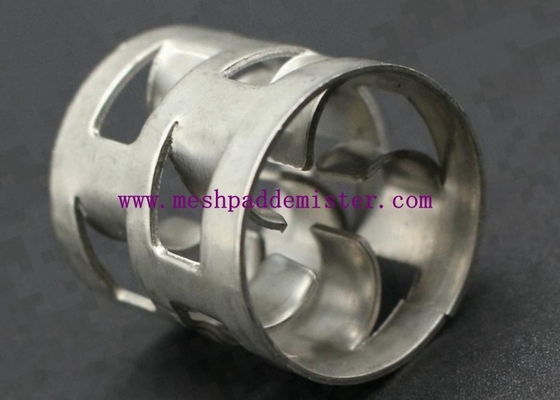

Pass Iso Ss316l 904l Metal Pall Ring 25mm Tower Random Packing

Pass Iso Ss316l 904l Metal Pall Ring 25mm Tower Random Packing
Pass Iso Ss316l 904l Metal Pall Ring 25mm Tower Random Packing Pass Iso Ss316l 904l Metal Pall Ring 25mm Tower Random Packing

Large Image :  Pass Iso Ss316l 904l Metal Pall Ring 25mm Tower Random Packing

Product Details:
Place of Origin: Hengshui, China
Brand Name: Hualai
Certification: ISO9001-2015
Model Number: 25mm
Payment & Shipping Terms:
Minimum Order Quantity: 0.1m³
Price: Negociation
Packaging Details: ton bag + pallet, wooden box etc.
Delivery Time: 5-15 days
Payment Terms: L/C, T/T
Supply Ability: 65 m³ per month

Pass Iso Ss316l 904l Metal Pall Ring 25mm Tower Random Packing

Description
Items: Metal Pall Ring Material: SS304 SS316 SS316L
Size: 9mm, 16mm, 25mm, 38mm, 50mm, 76mm Etc Thickness: 0.3mm-1.2mm
Model Number: HL20211012-01 Usage: Rrandom Tower Packing
Applications: Chemical Industry, Petrochemical Industry OEM: Yes
Shape: Ring, Cylindrical Sample: Available
High Light:

904l metal pall ring

,

metal pall ring 25mm

,

tower random pall ring packing

SS316L 25mm Tower Random Packing Stainless Steel Metal Pall Ring

Product Introduction

Metal pall packing is made of carbon steel,stainless steel, aluminum or other materials.

The product has features such as thin wall, heat resistant,high free volume, high capacity, low resistance, high separation efficiency and so on.

It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.

Pass Iso Ss316l 904l Metal Pall Ring 25mm Tower Random Packing 0



Pass Iso Ss316l 904l Metal Pall Ring 25mm Tower Random Packing 1



How to choose the best suitable size of Metal Pall Rings?

Here we have some reference data:



Size

Dia.*Height (mm)

Thickness

mm

Pack No.

(m3)

Specific Area (m2/m3)

Void Volume

%

Dry Packing Factor
16*16 0.3 214000 362 94.9 423
25*25 0.5 51940 219 95.0 255
38*38 0.6 15180 146 95.9 165
50*50 0.8 6500 109 96.0 124
76*76 1.2 1830 71 96.1 80



More sizes and thickness are available as per order.

Material

carbon steel, stainless steel SS304, SS316L, 904L, copper, etc.

Pass Iso Ss316l 904l Metal Pall Ring 25mm Tower Random Packing 2

Application

Metal pall rings can be applied to various of device of isolation, separation, absorption, desorption and pressure reducing.



Advantages


High efficiency
Easily Wettable
Good Liquid and Gas Distribution
Excellent stain resistance

Attentions



The joint clearance of pall ring shall be less than 0.4mm for DN16, DN25 and DN38mm, and less than 0.8mm for DN50 and DN76.



The upper and lower edges of the ring are not allowed to be dislocated. The end cross section of the pall ring shall be perpendicular to the axial center line and 90 degrees to the side.



There shall be no crack on the surface of packing ring and no burr on the edge of packing.



The package material must be strong enough, to endure loading, unloading and carrying for a few times. And it shall protect the pall rings to reach destination safely. Rain proof and moisture-proof measures shall be taken for metal pall rings during transportation. The random tower packing stainless steel pall rings shall be stored in a dry and non corrosive place. Do not store the pall rings in broken packages.

In 1940s, a famous Gemeny company modified the raschig ring greatly. In metal raschig rings, they open several windows on the side wall with inward blades. Without increasing the surface area of the packing, the flow of gas-liquid two-phase in the packing layer is greatly improved, and the hydrodynamics and mass transfer performance of the packing are improved.

Pass Iso Ss316l 904l Metal Pall Ring 25mm Tower Random Packing 3



Pass Iso Ss316l 904l Metal Pall Ring 25mm Tower Random Packing 4

FAQ


What's the delivery time?


It will take about 5-9 days. Bulk order will be depend on the order quantities and requirements;
We will do our best to send the products to you as soon as quickly.
