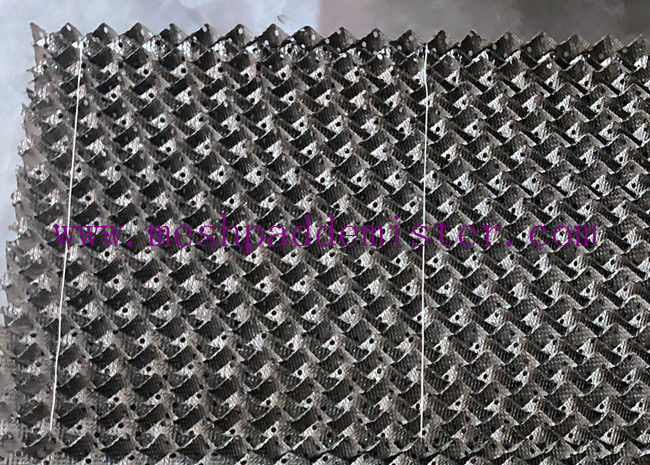

Custom Square 0.10mm Metal Structured Packing Double Fastening

Material: SS304, SS316L Height: 200mm, 150mm, 100mm
Plate Thickness: 0.10mm, 0.12mm, 0.15mm Surface Area: As Per Order
Size: Specified By Client Surface Treatment: Perforation, Corrugation
High Light:

0.10mm Metal Structured Packing


0.10mm Structured Packing


SS304 Metal Structured Packing

Custom size square shape metal structured packing double fastening


Structure of packed tower using metal structured packing

The packed tower is a continuous contact gas-liquid mass transfer equipment, which is composed of tower shell, packing, tower internals, gas-liquid inlet and outlet pipe fittings, etc.
The packing is the gas-liquid mass transfer element in packed tower, which determines the gas-liquid flow and contact transfer mode in the tower. Therefore, the material, structure and size of packing all affect the effective surface area and mass transfer coefficient of mass transfer, and determine the adaptability, effectiveness and economy of mass transfer process. There is a filler support under the filler to bear the weight of the filler. There is a liquid distributor above the packing, whose function is to evenly distribute the inlet liquid on the whole cross-section of the packing and keep a good initial distribution. Due to the wall effect of liquid in the packing layer and the formation of channel flow, the liquid redistributor should be set in the middle of the high packing layer to make the liquid redistribute evenly.
When the thin layer of high porosity packing is placed in the large diameter tower, the gas flow distribution on the cross section of the tower is not uniform, which affects the mass transfer efficiency of the packing. At this time, the inlet gas distributor should be set to make the high-speed gas flow in the feed pipe evenly distributed on the cross-sectional area of the tower.
In order to prevent the high-speed air from blowing or blowing up the packing layer, the top of the packing layer is provided with a packing pressing ring or a bed layer limiter. In addition, a liquid collector is required to lead out the side line.


Structured packings are classified according to their structural characteristics


Structured packing
Corrugated type Non-corrugated type

Vertical corrugated type

Mesh:metal mesh

Plastic mesh

Expanded metal lath, etc.

plate:Metal orifice plate

Plastic perforated plate

Horizontal corrugated type

Spraypak, Panapak

Grid type

Plate type

Rolled sheet metal filler

Porous metal plate filler, etc

Loop type


Hyperfil, etc


Characteristics of packed tower

Compared with plate column, packed column has certain advantages, especially in recent years, a variety of new and efficient packing has been developed, which has more prominent advantages and wider application range. Its specific characteristics are as follows:
1. The pressure drop is very low, which can be used in vacuum distillation and other operating systems with limited pressure drop.
2. With the development of new high efficiency packing, the production capacity (allowable gas velocity) and efficiency of packed tower are equal to or exceed those of plate column. Many units at home and abroad use new packing to transform plate column, which greatly improves production capacity and efficiency.
3. Flexible operation.
4. It can deal with foaming system.
5. General fillers are easy to be blocked by suspended solids in the liquid, while some grid fillers with large void fraction have self-cleaning effect under high gas velocity scouring, and are not easy to be blocked, and their heat transfer performance is better than that of baffles.
6. The material selection of fillers is wide, such as metal, plastic, ceramic, graphite, etc., which is suitable for wider chemical system and operating system.
7. Small liquid holding capacity, suitable for the treatment of heat sensitive materials.
8. The total investment cost of small tower (diameter ≤ 0.6m) is lower than that of plate tower, but the investment cost of large tower is higher.
9. The heat exchange in the middle of the tower is inconvenient.
10. It is difficult to draw out the side line and the structure is complex.
11. High requirements for initial gas-liquid distribution.
The process control is difficult because of its small liquid holding capacity and sensitivity.
