|Surface Area:||500 M2/m3||Material:||SS304, SS316L|
|Height:||100mm, 150mm, 200mm Per Layer||Clination:||30 Degrees, X Type|
|Surface Treatment:||Perforation, Corrugation||OEM:||Available|
wire mesh packing,
structured packing distillation column
500X Metal Structured Packing Round Shape 650 - 100mm Tower Packing Layer
Materials of Construction
The most common material used for Hualai structured column packing is SS 304L and SS 316L. However Hualai manufactures this solely based on our customers’ requirements and can also be made from other materials based on special requests.
Uniform Liquid Distribution
In order to achieve even liquid distribution over the packing it is a must to have a good liquid distributor to maximize the interaction of the liquid and vapor. However if the packing height exceeds 3 meters we recommend using an intermediate liquid re-distributor as well for even flow.
Applications of metal structured packing:
Hualai structured packing products list (part):
|Types of packing||Specific Surface||Void Fraction||Application|
|Wire gauze 500X||500||98.8%||
head pressure < 300 mbar
|Wire gauze 700Y||700||98.4%|
|Metal sheet 125X/Y||125||99.5%||High liquid and gas load|
|Metal sheet 250X/Y||250||98.8%||Standard|
|Metal sheet 350X/Y||350||98.3%||Higher NTSM at lower capacity|
|Metal sheet 500X/Y||500||97.7%||High NTSM|
|Metal sheet 700X/Y||700||97.0%|
Surface Treatments of Sheet Metal Structured Packing
It is important to achieve good contact between the liquid and vapor phases. A packing that spreads the liquid evenly in a thin film will exhibit beter performance. Mixing the film creates turbulence that enhances the mass transfer.
Modifications to the texturing of the packing surface improve the liquid spreading which, in turn, leads to enhanced packing eﬃciency.
All types of Hualai structured packings are available in a variety of corrugation sizes. This provides the versatility needed to optimize a packing configuration to best meet the eﬃciency, capacity, and pressure drop requirements for a particular application.

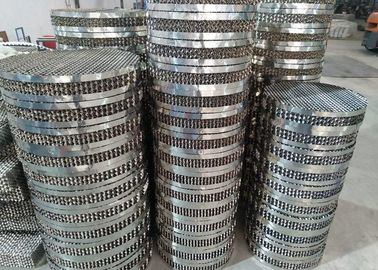

Ready metal structured packing in the workshop
Welcome your inquiry about Hualai structured packing any time!
