|Product Name:||PTFE Mist Elimiantor||Size:||As Per Order|
|Material:||PTFE + 316L||Working Temperature:||Under 235 ℃|
|Usage:||High Corrosion Environment Mesh Pad||Wire Diameter:||0.3mm|
wire mesh pad,
wire mesh mist eliminator

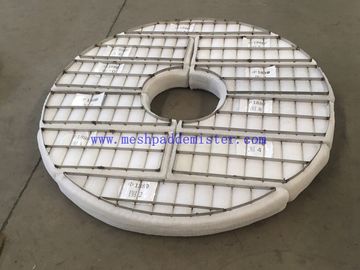

Stainless steel grids enforced PTFE mesh pad demister 1888 mm
1. Stainless steel grids enforced PTFE mesh pad demister material features,
Polytetrafluoroethylene (PTFE) has solved many problems in chemical, petroleum, pharmaceutical and other fields. Polytetrafluoroethylene seal, gasket, gasket. Polytetrafluoroethylene seal, gasket, gasket are made of suspension polytetrafluoroethylene resin molding. Compared with other plastics, polytetrafluoroethylene has the characteristics of chemical corrosion resistance. It has been widely used as sealing material and filling material. The dispersing liquid can be used as insulating impregnating liquid of various materials and anticorrosive coating on the surface of metal, glass and pottery. All kinds of PTFE ring, PTFE gasket, PTFE packing are widely used in all kinds of anticorrosive pipeline flange sealing. In addition, it can also be used for spinning, polytetrafluoroethylene fiber - fluoron.
Nowadays, all kinds of King plastic products have played an important role in the fields of national economy, such as chemical industry, machinery, electronics, electrical appliances, military industry, aerospace, environmental protection and bridges. Polytetrafluoroethylene (PTFE) service conditions industry Chemical, petrochemical, oil refining, chlor alkali, acid making, phosphate fertilizer, pharmaceutical, pesticide, chemical fiber, dyeing and chemical, coking, gas, organic synthesis, non-ferrous smelting, steel, atomic energy and polymer filter material, high-purity product production (such as ion-exchange membrane electrolysis), viscous material transportation and operation, food and beverage processing and production departments with strict hygiene requirements.
2. Where are mesh pad DEMISTER units used?
Knockout drums and separators – save on capital costs by decreasing vessel size-recover costly fatty acids from stream-reduce compressor maintenance by preventing scale build-up.
Absorbers – reduce overhead losses of glycols in dehydrators to no more than 0.1 gal/MMSCF natural gas-cut losses of absorption oil and amines in CO2 systems.
Scrubbers – reduce chemical discharges from Kraft mill smelt dissolver tank to less than 0.11 kg/dry ton (0.25 lb/dry ton) of pulp-improve scrubber efficiency by removing particulates carried in entrained liquids.
Distillation columns – improve product purities and increase throughput capacities for petrochemicals, organic intermediates, fine chemicals.
Evaporators – prevent carryover loss of valuable products, keep condensate TDS <10 ppm for highest quality boiler feed water-clean up vacuum ejector stream discharge-lower maintenance in vapor re-compression systems.
High pressure steam systems – provide dry steam- cut TDS to <10 ppb in condensate-eliminate build-up on turbine blades.
Refinery towers – increase throughput capacity-take deeper cuts for greater product yields – prolong catalyst life in downstream cracking and reforming units by reducing carbon and metals in side draws-use lower grade crudes.
3. Stainless steel grids enforced PTFE mesh pad demister Inquiry Table if Calculation Suggestions and Service are needed
|Please State your demister / mist eliminator application|
|Gas||Max. gas volume flow (operating conditions)||M3/h|
|Gas density (operating condistions)||Kg/m3|
|Operating pressure||Bar (a)|
|Dynamic viscosity of the liquid||mPas|
|Column diameter or dimensions||mm|
|Opening for installation||Manhole||¨ DN|
|Vessel flange||¨ Size|
|type of mist eliminator||Wire mesh demister|
|Efficiency of separation||%|
|Max. pressure drop|
Please pay attention to the Unit when refering to this sheet.
