Product Details:
|
| Equal Inch Type: | 1in, 2in, 3in, Other | Material Certificate: | Yes |
|---|---|---|---|
| Wall Thickness: | 0.5mm | Data Sheet: | Available |
| OEM: | Yes | Material: | SS316L |
| High Light: | stainless steel pall rings,76 mm pall ring |
||

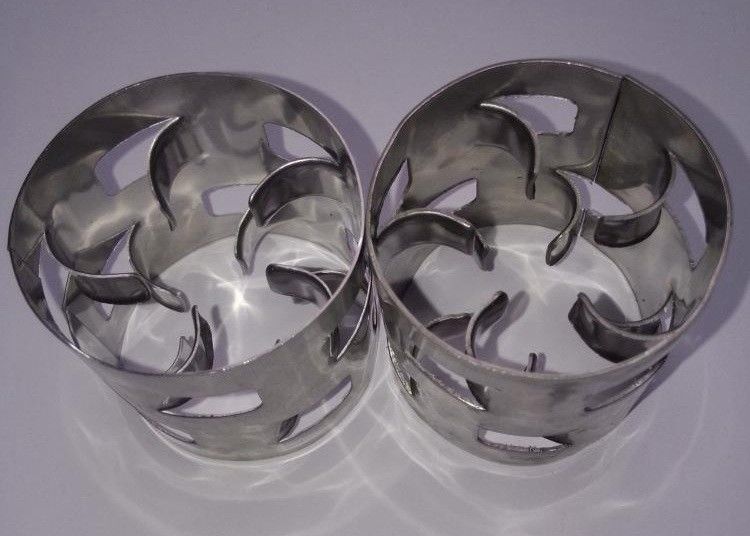

SS316L 50mm Metal Pall Rings Surface Area HETP Data Sheet Reference
Pall ring is a new type of filler improved on Raschig ring. Compared with the later, pall ring has improved the liquid distribution of filler layer greatly, with open windows on ring sidewall. Therefore it has productivity, low resistance, operating flexible and higher efficiency. Pall ring is widely applied to industry. It is still one of major annular fillers that has been adopted.
Pall rings, have more than 50% higher capacity than raschig ring.
The pressure drop is only half of the raschig ring.
The relative efficiency is about 30% higher than that of raschig ring.
50mm (2 inch) size pall ring specifications:
| 50mm Pall Rings | ||
| Free Space (%) | 96 |  |
| Specific Surface Area (m2/m3) 100 | ||
| No. Per Unit Volume (m3 ) | 6,000 | |
| Packing Factor (m-1) | 107 | |
|
Specific Weight (kg/m3) 196 – 354 Stainless Steel |
||
| Dimensions (mm) | 50 x 50 | |
| Thickness (mm) | 0.5 – 0.9 | |
| Normal Material stainless steel 304, 316L | ||
Technical Data of smaller sizes of metal pall rings:
| 16mm Pall Rings | ||
| Free Space (%) | 93 | |
| Specific Surface Area (m2/m3) 316 | ||
| No. Per Unit Volume (m3 ) | 210,000 | |
| Packing Factor (m-1) | 315 | |
|
Specific Weight (kg/m3) 400 – 535 Stainless Steel |
||
| Dimensions (mm) | 16 x 16 | |
| Thickness (mm) | 0.3 – 0.4 | |
| Normal Material stainless steel 304, 316L | ||
| 25mm Pall Rings | ||
| Free Space (%) | 94 | |
| Specific Surface Area (m2/m3) 209 | ||
| No. Per Unit Volume (m3 ) | 49,500 | |
| Packing Factor (m-1) | 176 | |
|
Specific Weight (kg/m3) 322 – 644 Stainless Steel |
||
| Dimensions (mm) | 25 x 25 | |
| Thickness (mm) | 0.4 – 0.8 | |
| 38mm Pall Rings | ||
| Free Space (%) | 95 | |
| Specific Surface Area (m2/m3) 122 | ||
| No. Per Unit Volume (m3 ) | 13,450 | |
| Packing Factor (m-1) | 107 | |
|
Specific Weight (kg/m3) 200 – 400 Stainless Steel |
||
| Dimensions (mm) | 38 x 38 | |
| Thickness (mm) | 0.4 – 0.8 | |
| Normal Material stainless steel 304, 316L | ||
Easily wettable
High resistance to fouling
High temperature endurable
High temperature applications
HIGH MECHANICAL STRENGTH
High capacity with low pressure drop
Mechanically robust, lesser probability of breakage
Good liquid/gas distribution and high mass transfer efficiency
Welcome your inquiry with any questions!
