Product Details:
|
| Product Name: | Wire Mesh Pad Demister Mist Eliminator | Application: | Vessel Scrubber |
|---|---|---|---|
| Feature: | For Replacement, No Grids | Shape: | Rectangular |
| Material: | SS316L | Thickness: | 100mm, 150mm, Or As Per Order |
| High Light: | mesh pad mist eliminator,filter mesh pad |
||

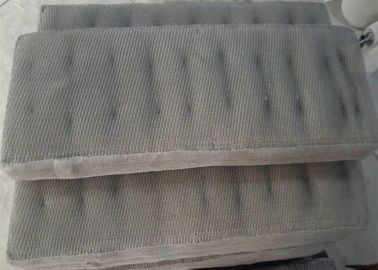

SS316L Wire Mesh Pad Demister Mist Eliminator Vessel 80 Kg/M3 Rectangular
Mesh pad demister mist eliminator, which are used in removing droplets entrained in flow gas, is constructed from knitted wire mesh with a cellular structure. The knit mesh are made into a mesh pad with determinate thickness and diameter, through which the two phases liquid-gas or liquid-vapor are disengaged.
From the statistic data obtained both in laboratory tests and industrial applications, it shows that the proper designed mesh pad demister allows a separation of liquids carried by gas with efficiency reaching 99.9%.
Wire Mesh Demister Mist Eliminator Specifications in this case
| Item | Value | Unit |
| Material | SS316L | / |
| Shape & Size | 1100*450 | mm |
| Mesh Thickness | 150 | mm |
| Demsiter Height | 150 | mm |
| Wire Diameter | 0.23 | mm |
| Mesh Density | 80 | kg/m3 |
| Void Fraction | 0.99 | / |
| Specific Area | 175 | m2/m3 |
| Grids | no grids | mm |
Advantages of wire mesh demister mist eliminator:
• Light weight
• Easy to install
• No moving parts
• Shipped promptly
• Low pressure drop
• Requires no maintenance
• Fits all process equipment
• Wide variety of materials of construction available
Located in Anping, China, we enjoy many advantages like convenient material purchasing, lower labor cost, faster courier service, etc. Demister Material we usually use: PP, PTFE, SS304, SS304L, SS316, SS316L, SS201, SS202, SS301S, SS321, Copper, Nickel, Titanium, Duplex 2205, Duplex 2507, NS-80, Monel 400 alloy, Co-knit 904L+fiber glass, Co-knit 316L+ fiber glass, Co-knit 316L+PP flat..
Wire mesh demister mist eliminator Applications:
| Mesh Density | Application |
| 80 | It is used for the case that velocity is big, small pressure drop is required, or collection of big particles or high efficiency is not required. High-treatment style. |
| 128 | Domestic standard for general purpose application. |
| 144 | It is extensively used for petrochemical plants. Pressure drop is quite small and efficiency is 90-99%. Standard style. |
| 193 | It is used a lot as a standard. It shows 1-5m/sec 98-99% efficiency with 5-10 um particles when it is used as a general use. High-efficiency style |
