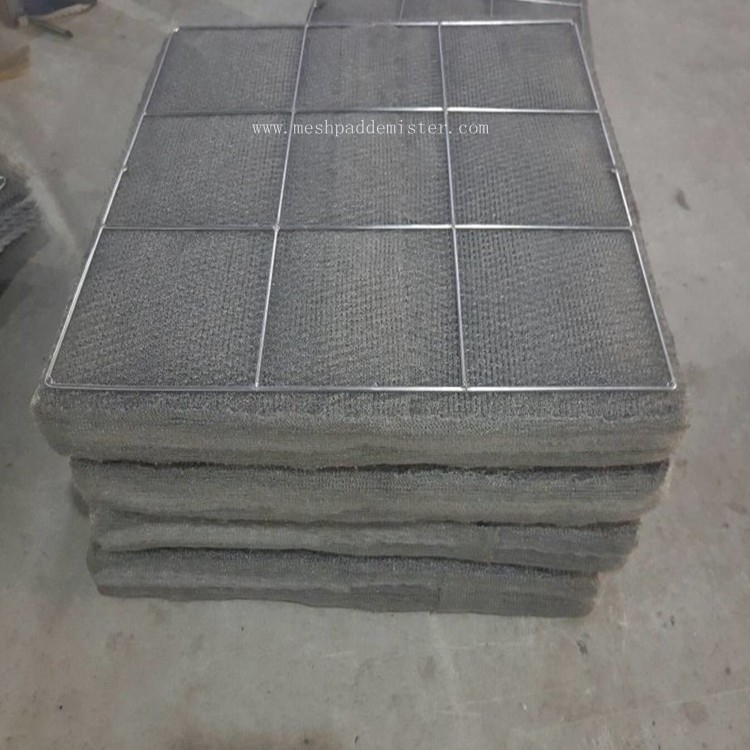

1000mmx1000mm Screen Grids And Plate Edge Knitted Wire Mesh Demister Pad

Wire mesh pad demister, which are used in removing droplets entrained in flow gas, is constructed from knitted wire mesh with a cellular structure. The knit mesh are made into a mesh pad with determinate thickness and diameter, through which the two phases liquid-gas or liquid-vapor are disengaged.
From the statistic data obtained both in laboratory tests and industrial applications, it shows that the proper designed mesh pad demister allows a separation of liquids carried by gas with efficiency reaching 99.9%.

Demister mist eliminator Specifications in this case

Applications of demister pad

1. SS304 Water solutions, Nitric acid reduced crude petroleum fraction etc.

2. SS316L Fatty acid reduced crude containing naphthenic acids and corrosive chemicals3.

3. Synthetic fiber For corrosive service at moderate temperature

4. PP(Polypropylene) For corrosive service at temperature up to 70℃

5. PTFE For corrosive service at temperature of (-190℃, 250℃)

6. Monel Caustic soda, dilute acid

7. Nickel Caustic Soda, food products

8. Copper Freon, alcohol

9. Aluminium Nitric Acid

The material for demister pad we have in stock

Package & shipping of wire mesh demister mist eliminator with frame:



Welcome your inquiry with any questions! Here in Hualai we are always ready to be helpful!
