Product Details:
|
| Material: | Duplex 2205 | Vane Distance: | 20mm, 25mm, 30mm, Or Other |
|---|---|---|---|
| Shape: | As Per Order | Chevron Height: | As Per Drawing |
| Bracket Plate Thickness: | As Per Order | Vane Plate Thickness: | 0.5mm, 1mm, 1.5mm, Etc. |
| High Light: | custom made chevron mist eliminator,duplex 2205 chevron mist eliminator,chevron mist eliminator with flange cases |
||
Duplex 2205 vane pack mist eliminator custom made with flange cases
1. Hualai help make special designed vane pack mist eliminator,

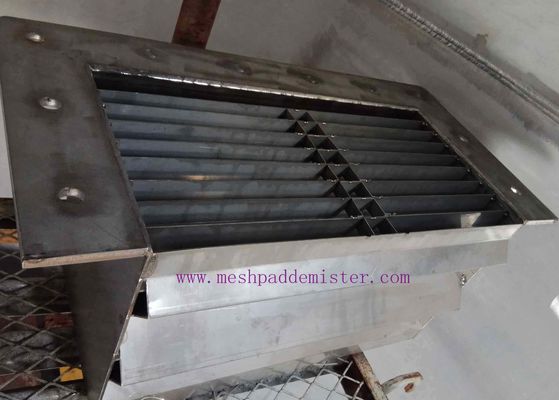

In Hualai factory, we are always trying to understand our customer's requirements and so better satisfiy them. In this case, it is a new-designed chevron plate mist eliminator in 2205 material. For easier handling and installation in the working place, a metal plate bracket is added. The point is on both top and bottom sides, some regular drain holes are perforated. They can either be used to fasten the mist eliminator or to drain the liquid droplet captured. Also the mist eliminator can assure a good performance either installed upward or downward.
2. Hualai can design vane pack mist eliminator, too.
Hualai factory can provide the equipment of demister system and the design of support structure for demister in absorption tower
The design of the demister should fully consider the influence of the section design of the plates, the distance between the plates, the arrangement of the plates, the design of the flushing system and the selection of the nozzles on the operation of the demister.
The whole system of the demister should have a strong adaptability to the operating conditions such as the inclusions flowing through the medium, turbid liquid, the content of solid particles and the pressure of the flushing nozzle, that is, it should still have a good demisting effect when the operating conditions and parameters change, and each guarantee value does not change.
| No. | Item | Unit | Data |
| 1 | Absorber (case) | ||
| 1.1 | Diameter of front passage of demister | m | Φ2.6 |
| 1.2 | Raw flue gas flow of single tower (wet) | m3/h | 31000 |
| 1.3 | Net flue gas flow of single tower (wet) | Nm3/h | 32500 |
| 1.4 | Net flue gas temperature | ℃ | 45 |
| 1.5 | Average velocity of flue gas before demister | m/s | ≤2 |
| 1.6 | Spray mode of absorption tower | downward | downward |
| 1.7 | Absorber nozzle type | Hollow cone | |
| 1.8 | Average droplet size(D32) | μm | 2000 |
| 1.9 | Flue gas temperature: normal operation / design | ℃ | 45/80 |
| 1.10 | Cl-concentration | ppm | ＜40000 |
| 2 | Demister data | ||
| 2.1 | First stage vane plate demister | ||
| 2.1.1 | Type | ||
| 2.1.2 | Material | ||
| 2.1.3 | Weight | kg | |
| 2.2 | Second stage vane plate demister | ||
| 2.2.1 | Type | ||
| 2.2.2 | Material | ||
| 2.2.3 | Weight | kg | |
| 2.3 | Liquid holding capacity of flue gas at demister outlet (dry, standard state) | mg/Nm3 | |
| 2.4 | Pressure drop (two stage plate) | Pa | <150 |
| 2.5 | Material of demister | ||
| 2.6 | Spray pipe material | ||
| 2.7 | Total weight of spray pipe | kg | |
| 2.8 | Nozzle material | ||
| 2.9 | Nozzle pressure drop | bar | |
| 2.10 | Number of nozzles | pc | |
| 2.11 | Nozzle unit weight | kg | |
| 3 | Flushing water volume | Fill in by 100% | |
| 3.1 | Upper part of the first stage | m3/(h·m2) | |
| 3.2 | Lower part of the first stage | m3/(h·m2) | |
| 3.3 | Upper part of the second stage | m3/(h·m2) | |
| 3.4 | Lower part of the second stage | m3/(h·m2) |
3. Hualai vane pack mist eliminator application,
The chevron plate demister is widely used to separate entrained liquid droplets from gas stream, in which the liquid droplets are 8 μm or larger. When the gas stream passes through the vane pack demister and change direction, the liquid droplets are unable to change direction as quick as the gas due to their momentum. So the liquid droplets impact on the chevron blade and then coalesce and form large droplets until drain away.
In the special environment, where there is some small solid particles, vane pack mist eliminator is the better choice for liquid and gas separator than the wire mesh demister.
4. Advantages of vane pack demister / mist eliminator
1. Lower pressure drop.
2. Resistance to fouling.
3. High tensile strength.
4. Durable and long service life.
5. Custom-made design available.
6. High filtering and separating efficiency.
7. High capacity. It has 30% to 100% more capacity than the wire mesh mist eliminator.
