500mm Wire Mesh Demister 911 Mesh Type Or Called 431 Style HL-144

I'm Online Chat Now

500mm Wire Mesh Demister 911 Mesh Type Or Called 431 Style HL-144

500mm Wire Mesh Demister 911 Mesh Type Or Called 431 Style HL-144
500mm Wire Mesh Demister 911 Mesh Type Or Called 431 Style HL-144 500mm Wire Mesh Demister 911 Mesh Type Or Called 431 Style HL-144

Large Image :  500mm Wire Mesh Demister 911 Mesh Type Or Called 431 Style HL-144

Product Details:
Place of Origin: Hengshui, China
Brand Name: Hualai
Certification: ISO9001-2015
Model Number: HL-144
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 999 pcs per month

500mm Wire Mesh Demister 911 Mesh Type Or Called 431 Style HL-144

Description
Material: SS304 Size: 500mm
Sections: 1 Product Name: Demister Pad
Application: Distillation Tower Mesh Density: 144 Kg/m3
High Light:

wire mesh demister pad

,

wire mesh pad



500mm wire mesh demister pad 911 mesh type or called 431 style ?


Wire Mesh Demister Specifications in this case



Item Value Unit
Material SS304 /
Shape & Size Φ500 mm
Mesh Thickness 100 mm
Demsiter Height 150 mm
Wire Diameter 0.28 mm
Mesh Density 144 kg/m3
Void Fraction 0.982 /
Specific Area 260 m2/m3
Grids 25*3 flat bar mm



Applications of wire mesh demister pad,



Reduce loss of valuable chemicals: demister pads markedly cut glycol, amine, or solvent consumption in absorption and regeneration towers.

Increase throughput capacity: demister pads allow a significant increase in throughput anywhere gases and liquids come into contact in process equipment.

Improve product purity: demister pads prevent contamination of side draws and overheads in refinery atmospheric and vacuum towers and other distillation columns.

Minimize contamination: demister pads can prevent the poisoning of expensive downstream catalysts or provide boiler feed water quality condensate from evaporator overheads.

Provide equipment protection: demister pads protect turbine, blower, and compressor blades, which can eliminate serious maintenance problems.

Reduce air pollution: demister pads help diminish droplet emissions to environmentally acceptable levels.

Though the demister is deemed the standard type because it is used in many fields, this model is strong and highly efficient. The demister is used in places where it is necessary to reduce accompanying airborne droplets to a minimum.

The demister safely functions because the design adapts to changes in gas or fluid flow rate. Generally, the 100mm mesh pad is used, but the mesh pad of greater thickness is used where the flow rate changes extensively, offering increased production.

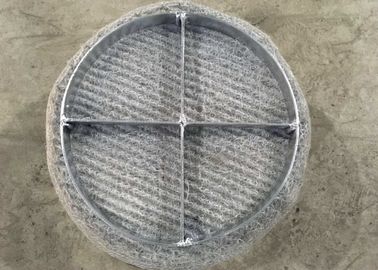

Ready for shipping of wire mesh demister pad:

500mm Wire Mesh Demister 911 Mesh Type Or Called 431 Style HL-144 0
