SUS 304 Distillation Column Packing Material 970 Mm * 440 Mm *100 Mm Size Mella 350Y

I'm Online Chat Now

SUS 304 Distillation Column Packing Material 970 Mm * 440 Mm *100 Mm Size Mella 350Y

SUS 304 Distillation Column Packing Material 970 Mm * 440 Mm *100 Mm Size Mella 350Y
SUS 304 Distillation Column Packing Material 970 Mm * 440 Mm *100 Mm Size Mella 350Y SUS 304 Distillation Column Packing Material 970 Mm * 440 Mm *100 Mm Size Mella 350Y

Large Image :  SUS 304 Distillation Column Packing Material 970 Mm * 440 Mm *100 Mm Size Mella 350Y

Product Details:
Place of Origin: Hengshui, China
Brand Name: Hualai
Certification: ISO9001-2015
Model Number: 350Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negociation
Packaging Details: pallets, wooden box
Delivery Time: 5-7 days
Payment Terms: L/C, T/T
Supply Ability: 900 cubic meters per month

SUS 304 Distillation Column Packing Material 970 Mm * 440 Mm *100 Mm Size Mella 350Y

Description
Material: SS304, SS316L Height: 100mm
Surface Area: 350 Surface Treatment: Perforation, Corrugation
OEM: Available Size: Specified By Client
High Light:

sus 304 distillation column packing material

,

350y distillation column packing material

,

sus 304 distillation packing

SUS 304 material 970 mm * 440 mm *100 mm size Mella 350Y distillation packing





1. Mella 350Y distillation packing



These pieces of 970 mm * 440 mm * 100 mm SUS 304 material Mella 350Y distillation packing are not to be used in distillations towers. It is designed to be used in top of a cooling tower. We are alwyas happy to help our customers to realize their ideas.



2. Hualai structured packing products list (part):



Types of packing Specific Surface Void Fraction Application
Wire gauze 500X 500 98.8%

Fine chemicals

head pressure < 300 mbar

Wire gauze 700Y 700 98.4%
Metal sheet 125X/Y 125 99.5% High liquid and gas load
Metal sheet 250X/Y 250 98.8% Standard
Metal sheet 350X/Y 350 98.3% Higher NTSM at lower capacity
Metal sheet 500X/Y 500 97.7% High NTSM
Metal sheet 700X/Y 700 97.0%



3. Mella 350Y distillation packing:



Lower pressure drop through the column

■Lower botoms temperature for heat sensitive systems

■Higher relative volatility for difficult separations

■Lower energy consumption

■Reduced foaming tendency

Higher efficiency in the same tower height

■Large number of theoretical stages required

■Reduced reflux requirement

Higher capacity

■Reduced vessel diameter

■Increased operating rates

Excellent liquid spreading characteristics

■Improved efficiency

■Offshore applications subject to permanent tilt and motion

Reduced liquid hold-up

■Smaller amounts of polymer inhibitor



4. Mella 350Y distillation packing uses the industry standard corrugated perforated and embossed sheet metal design to provide efficient vapour-liquid contact. The style of the embossed surface has been optimised to provide maximum wetability and numerous perforations enhance cross mixing of the process fluids. Type Y has a crimp angle of 45° and type X 30°. Suitable liquid irrigation range from below 0.5 up to 200 m3/m2.hr.

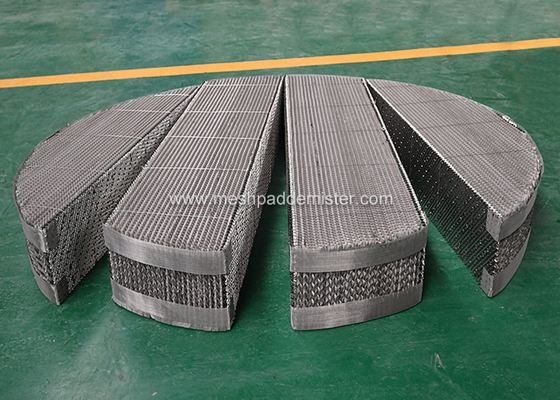

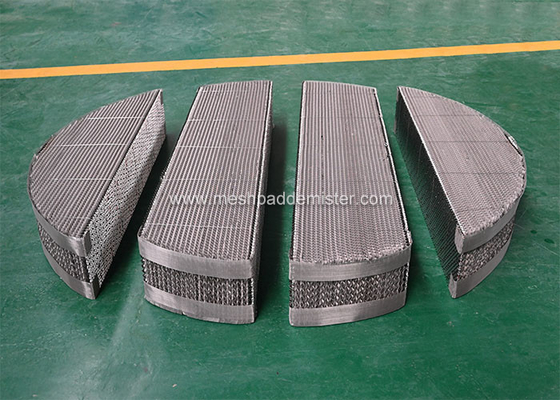

5. Mella 350Y distillation packing shipped to the port.



SUS 304 Distillation Column Packing Material 970 Mm * 440 Mm *100 Mm Size Mella 350Y 0SUS 304 Distillation Column Packing Material 970 Mm * 440 Mm *100 Mm Size Mella 350Y 1



6. Surface Treatments of Mella 350Y distillation packing



It is important to achieve good contact between the liquid and vapor phases. A packing that spreads the liquid evenly in a thin film will exhibit beter performance. Mixing the film creates turbulence that enhances the mass transfer.

Modifications to the texturing of the packing surface improve the liquid spreading which, in turn, leads to enhanced packing efficiency.

All types of Hualai structured packings are available in a variety of corrugation sizes. This provides the versatility needed to optimize a packing configuration to best meet the efficiency, capacity, and pressure drop requirements for a particular application.



Welcome your inquiry about Hualai structured packing any time!
