1/2" 25mm Ss316 Saddle Ring Metal Random Packing

I'm Online Chat Now

1/2" 25mm Ss316 Saddle Ring Metal Random Packing

1/2" 25mm Ss316 Saddle Ring Metal Random Packing
1/2" 25mm Ss316 Saddle Ring Metal Random Packing 1/2" 25mm Ss316 Saddle Ring Metal Random Packing

Large Image :  1/2" 25mm Ss316 Saddle Ring Metal Random Packing

Product Details:
Place of Origin: Hengshui, China
Brand Name: Hualai
Certification: ISO9001
Model Number: HL2022021210
Payment & Shipping Terms:
Minimum Order Quantity: 1 cubic meter
Price: negotiation
Packaging Details: ton bag, pallet, wooden box, etc.
Delivery Time: 7-10 days
Payment Terms: L/C, T/T
Supply Ability: 99 cubic meters per month

1/2" 25mm Ss316 Saddle Ring Metal Random Packing

Material: SS304 SS316 Application: Absorption, Scrubbing, Etc.
Size: 15#, 25#, 40#, 50#, Etc OEM: Yes
Feature: High Capacity, Low Pressure Drop Product Group: Metal Random Packing
Packing: Jumbo Bag Service: On Line Service
High Light:

1/2" metal random packing


25mm metal random packing


saddle ring packing 25mm

1/2" 25mm SS316 Saddle Ring for Philippine Market Metal Random Packing

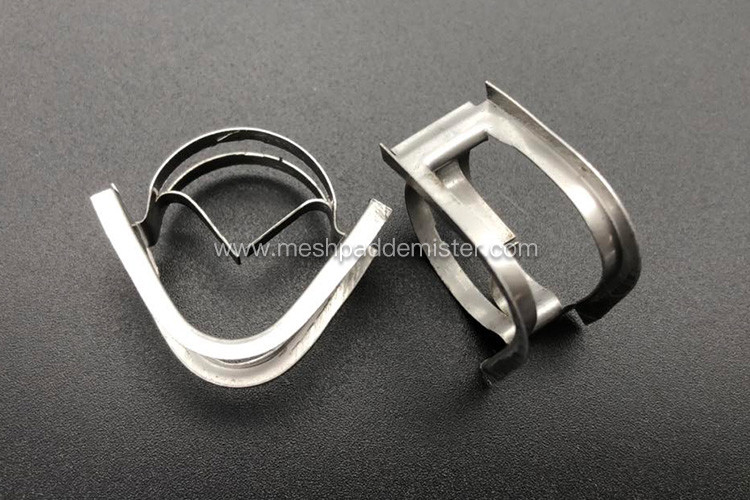

1.Metal Saddle Ring Introduction


We can see that the upper arc is an elliptic curve and the lower arc is a semicircle curve. Though it looks complex in the self-structure and shape, it is made of a single square piece of metal sheet. So it will be easy to calculate the specific area of this kind of packing, if we know the bulk packing number of a cubic meter.

With experiences and technologies of random packing in Hualai, we are expecting to be helpful in your project!


2. Stainless Steel 304 Saddle Ring Options:


25mm Stainless Steel 304 Saddle Ring:

Nominal size

25 mm saddle rings


0,3 mm


228 kg/m³

Surface area

235 m²/m³

Void fraction

97 %


stainless steel

Available material

carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request


In Hualai, we understand the importance of timeliness and quality for all plant operations. Hualai factory serves local, domestic and international partners all with the same strategic purpose - reliable quality, partnership attitude and attention to details.


3. SS 316L Random Packing Saddle I Ring Advantage:


The metal saddle ring gives one of the best choices for high performance random packing, with low pressure drop and high efficiency. This specially designed saddle-shape random packing provides a lower pressure drop at the same vapor and liquid loads. It can be effectively used in both high pressure and vacuum towers. Others of its advantages include large effective inter-facial area, high mechanical strength and low cost. Metal saddle rings are therefore used in many distillation and absorption columns all around the world. It is available in various sizes, which give different combinations of efficiency and pressure drop.


4. Metal Saddle Ring Packing Applications:


Metal saddle ring packed bed has a large void fraction, and most of the packing is circular liquid channel, which reduces the resistance of gas passing through the bed, also reduces the radial diffusion coefficient of liquid flowing downward.

Metal saddle ring is widely applied in drying tower, absorption tower, cooling tower, washing tower, wet scrubber tower, Regeneration tower, etc. Covering the industries like Chemical, Metallurgical, Gas and Environmental Protection.


5.Hualai metal tower packing product groups:

1/2" 25mm Ss316 Saddle Ring Metal Random Packing 0

1/2" 25mm Ss316 Saddle Ring Metal Random Packing 1

1/2" 25mm Ss316 Saddle Ring Metal Random Packing 2

In Hualai factory, except for stainless steel 304 saddle rings, we produces and exports perforated corrugated metal plate structured packing, corrugated wire gauze packing, metal random packing like pall rings, intalox saddles, cascade mini ring, raschig ring, rosette ring, super raschig ring, inner arc ring, conjugate ring, mini ring, etc.. All these types of packing are available in carbon steel, stainless steel 304, 316L. Additionally, titanium, monel, copper and some other alloy materials are also available for some of the packing types, too.


Welcome your inquiry for more info!
