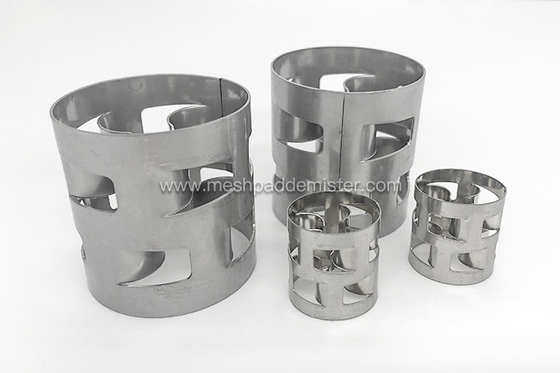

OEM Metal Pall Ring 16mm 25mm 38mm 50mm 76mm

I'm Online Chat Now

OEM Metal Pall Ring 16mm 25mm 38mm 50mm 76mm

OEM Metal Pall Ring 16mm 25mm 38mm 50mm 76mm
OEM Metal Pall Ring 16mm 25mm 38mm 50mm 76mm OEM Metal Pall Ring 16mm 25mm 38mm 50mm 76mm

Large Image :  OEM Metal Pall Ring 16mm 25mm 38mm 50mm 76mm

Product Details:
Place of Origin: Hengshui, China
Brand Name: Hualai
Certification: ISO9001
Model Number: metal saddle ring
Payment & Shipping Terms:
Minimum Order Quantity: 1 cubic meter
Price: negotiation
Packaging Details: ton bag, pallet, wooden box, etc.
Delivery Time: 7-10 days
Payment Terms: L/C, T/T
Supply Ability: 99 cubic meters per month

OEM Metal Pall Ring 16mm 25mm 38mm 50mm 76mm

Description
Name: 16mm 25mm 38mm 50mm 76mm 304ss 316L Stainless Steel Metal Pall Ring Manufacturer From Anping Material: All
Application: Industrial, As Tower Packing,metal Tower Packing, Industrial,etc. Size: 15#, 25#, 40#, 50#, Etc.
OEM: Yes Feature: High Capacity, Low Pressure Drop
Product Group: Metal Random Packing Sample: Sample Provided
Shape: Round, Ring,mini Tower
High Light:

16mm metal pall ring

,

oem metal pall ring

,

76mm stainless steel pall rings

16mm 25mm 38mm 50mm 76mm 304ss 316L Stainless Steel metal pall ring manufacturer from anping





1. Stainless Steel 304 Saddle Rings Advantage:



Hualai offers high performance metal tower packing, including structured packing and random packing. Among this group, metal saddle ring can be effectively used in both high pressure and vacuum tower services, delivering superior performance over traditional pall ring random packing. Other benefits can be expected like lower pressure drop, higher efficiency, less liquid hold up, etc..

Other advantages of Hualai metal random packing include a large effective surface area, higher mechanical strength and a competitive cost. Hualai metal random packing is available in a group of sizes and materials so whatever the need may be, Hualai has the solution for the best efficiency and pressure drop. As per request, Hualai metal random packing is available in the most commonly used metal alloys such as 410, 304, 316L and other common alloys.



2. Stainless Steel Saddle Ring Options:



The following five sizes are available in 304 SS for data reference– 25mm (1”), 40mm (1 1/2”), 50mm (2”), 60mm (2 3/8”) and 70mm (2 3/4”).



3.Main features: small flow resistance, uniform liquid distribution, high mass transfer efficiency and large gas flux Application scope: it can provide gas-liquid distribution transmission efficiency. It is suitable for carbon dioxide degassing tower, ozone contact reaction tower, etc. as contact packing and other reaction towers



25mm Stainless Steel 304 Saddle Ring:

Nominal size 25 mm saddle rings
Thickness 0,3 mm
Weight 228 kg/m³
Surface area 235 m²/m³
Void fraction 97 %
Material stainless steel
Available material carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request



40mm Stainless Steel 304 Saddle Ring:

Nominal size 40 mm saddle rings
Thickness 0,4 mm
Weight 241 kg/m³
Surface area 170 m²/m³
Void fraction 97 %
Material stainless steel
Available material carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request



50mm Stainless Steel 304 Saddle Ring:

Nominal size 50 mm saddle rings
Thickness 0,4 mm
Weight 158 kg/m³
Surface area 115 m²/m³
Void fraction 97 %
Material stainless steel
Available material carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request



60mm Stainless Steel 304 Saddle Ring:

Nominal size 60 mm saddle rings
Thickness 0,4 mm
Weight 127 kg/m³
Surface area 90 m²/m³
Void fraction 98 %
Material stainless steel
Available material carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request



70mm Stainless Steel 304 Saddle Ring:

Nominal size 70 mm saddle rings
Thickness 0,5 mm
Weight 116 kg/m³
Surface area 67 m²/m³
Void fraction 98 %
Material stainless steel
Available material carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request



In Hualai, we understand the importance of timeliness and quality for all plant operations. Hualai factory serves local, domestic and international partners all with the same strategic purpose - reliable quality, partnership attitude and attention to details.



4. Hualai metal tower packing product groups:

OEM Metal Pall Ring 16mm 25mm 38mm 50mm 76mm 0



In Hualai factory, except for stainless steel 304 saddle rings, we produces and exports perforated corrugated metal plate structured packing, corrugated wire gauze packing, metal random packing like pall rings, intalox saddles, cascade mini ring, raschig ring, rosette ring, super raschig ring, inner arc ring, conjugate ring, mini ring, etc.. All these types of packing are available in carbon steel, stainless steel 304, 316L. Additionally, titanium, monel, copper and some other alloy materials are also available for some of the packing types, too.



Metal ring packing


It is one of the most common and well-known bulk packing materials. It is made of sheet metal and has a special structure. There are two rows of windows inclined inward on the annular wall. Each row of windows has five lobes that bend inward and point to the center where the tongue contacts each other. The positions of the upper and lower windows are staggered. Generally, the area of the window is about 30% of the whole ring area. The window on the ring wall makes the distribution and mass transfer efficiency of liquid and gas in the package better than that of Raschig ring.
