Ss Grade 304 1" Metal Random Packing Dn25mm Pall Ring

Large Image : Ss Grade 304 1" Metal Random Packing Dn25mm Pall Ring

Product Details:

Place of Origin:	China
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	0.01 cubic meters
Price:	negociation
Packaging Details:	carton, bag, pallet
Delivery Time:	5-9 days
Payment Terms:	T/T
Supply Ability:	99 cubic meters per month

Contact Now

Ss Grade 304 1" Metal Random Packing Dn25mm Pall Ring

Description

Product Name:	Metal Pall Ring	Material:	SS304 316
Size:	1 In / 25 Mm	Wall Thickness:	0.5 Mm
Usage:	Industry	Application:	Distillation Tower Packing
Data Sheet:	Available	OEM:	Yes
Sample:	Free	Warranty:	Lifetime Online Service
High Light:	25mm metal random packing , grade 304 metal random packing , dn25 metal pall ring

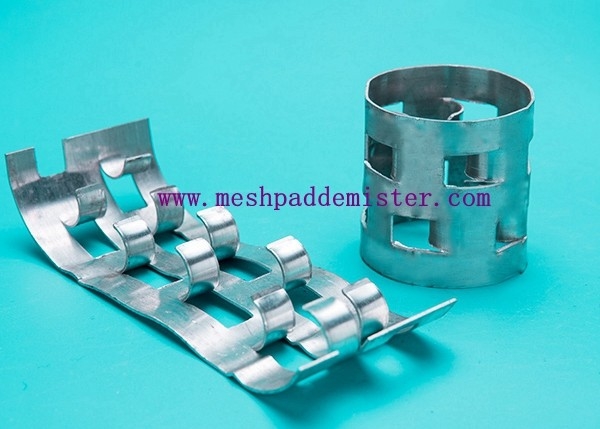

SS304 1" DN25mm Stainless Steel Pall Ring Metal Random Packing

Pall ring is a new type of filler improved on Raschig ring. Compared with the later, pall ring has improved the liquid distribution of filler layer greatly, with open windows on ring sidewall. Therefore it has productivity, low resistance, operating flexible and higher efficiency. Pall ring is widely applied to industry. It is still one of major annular fillers that has been adopted.

25 mm Metal Pall Ring Specification:

**1. Dimensions : Dia.Height (mm) 2525mm**

2. Material:Stainless Steel

3. Thickness: 0.4 – 0.8(mm)

4. Free Space :94%

5. Specific Surface Area : 209(m2/m3)

6. No. Per Unit Volume :49,500(m3 )

7. Packing Factor (m-1): 176

8. Specific Weight :322 – 644(kg/m3)

Material:

Metal Pall Ring, Stainless steel Pall rings, Packing Pall Ring are available in a wide range of materials such as stainless steel ,carbon steel ,aluminum, bronze,304L,316L,and other alloy etc.

Application

Metal pall rings are widely used in kinds of Chemical Industry, petrochemical industry,environmental protection, etc.

Benefits of metal pall rings:

1. Multiple materials available

2. High temperature applications

3. Mechanically robust, lesser probability of breakage

4. Good liquid/gas distribution and high mass transfer efficiency

Packing

Various Package:Plastic bag, Jumbo Bag, Wooden Case, Carton Box, On Pallet With PP Film Wrapped

Metal Pall Ring Production & Shipment

Tag:

cascade mini ring,

ss pall rings,

raschig super rings

Contact Details

Beijing Silk Road Enterprise Management Services Co.,LTD

Tel: 15112670997

Other Products

Distillation Column 304 Metal Random Packing Pall Ring 25 × 25 × 0.4 Mm

Product name: metal random packing pall ring

size: 1 in / 25 mm

wall thickness: 0.4 mm

Material: SS304

Random 304 Metal Pall Ring Packing 50 × 50 × 0.8 Mm

Product name: metal random packing pall ring

size: 2 in / 50 mm

wall thickness: 0.8 mm

Application: distillation tower packing

Random Odm Metal Pall Ring Packing 304 38 × 38 × 0.5 Mm In Stocks

Product name: metal random packing pall ring

Size: 1.5 in / 38 mm

Wall thickness: 0.5 mm

Sample: free sample

Distillation Column 316 Metal Random Packing Pall Ring 25 × 25 × 0.4 Mm

Product name: Distillation Column 316 Metal Random Packing Pall Ring 25 × 25 × 0.4 Mm

size: 1 in / 25 mm

wall thickness: 0.4 mm

Material: SS304

25 × 25 × 0.4 Mm Metal Random Packing Pall Ring Distillation Column 304

Product name: 25 × 25 × 0.4 mm Distillation Column 304 Metal Random Packing Pall Ring

Application: distillation tower packing

size: 1 in / 25 mm

wall thickness: 0.4 mm
