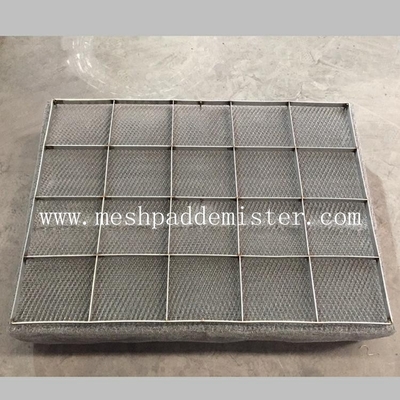

0.15mm Knitted High Density Wire Mesh Demister Pad With Bracket

I'm Online Chat Now

0.15mm Knitted High Density Wire Mesh Demister Pad With Bracket

0.15mm Knitted High Density Wire Mesh Demister Pad With Bracket
0.15mm Knitted High Density Wire Mesh Demister Pad With Bracket 0.15mm Knitted High Density Wire Mesh Demister Pad With Bracket

Large Image :  0.15mm Knitted High Density Wire Mesh Demister Pad With Bracket

Product Details:
Place of Origin: Hengshui, China
Brand Name: Hualai
Certification: ISO9001-2015
Model Number: HL2021110901
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 999 pcs per month

0.15mm Knitted High Density Wire Mesh Demister Pad With Bracket

Description
Feature: Easy Handling Use: Oil Gas Separator
Material: SS316 Product Name: Demister Pad With Bracket
Size: Any Size As Per Order Advantage: Fast Delivery
Packing: Wooden Carton Length: Any Size As Per Order
High Light:

high density wire mesh demister pad

,

0.15mm wire mesh demister pad

,

0.15mm knitted wire mesh demister

SS316 Rectangle Stainless Steel Knitted Wire Mesh Type Demister Pad

Demister pad also called knitted wire mist eliminator, mist pad, wire mesh demister is used in gas entrained mist separation column to guarantee the filtering efficiency. It is made of stainless steel wire




Specifications

1. Material SS316

2. Shape & Size customization

3. Mesh Thickness 80 mm

4. Demister Height 80 mm

5. Wire Diameter 0.15mm

6. Mesh Density 128 kg/m3

7. Void Fraction 0.984 /

8. Specific Area 430 m2/m3

9.Grids crimped mesh + curved ss plate mm



Applications of some main type of demister pad:

1. Mesh Density 80kg/m³,It is used for the case that velocity is big, small pressure drop is required, or collection of big particles or high efficiency is not required. High-treatment style.

2. Mesh Density 128kg/m³,Domestic standard for general purpose application.

0.15mm Knitted High Density Wire Mesh Demister Pad With Bracket 0









Package & shipping of wire mesh demister pad:

0.15mm Knitted High Density Wire Mesh Demister Pad With Bracket 1
