2500mm Packed Tower Internals 304 Material Liquid Collector

2500mm Packed Tower Internals 304 Material Liquid Collector
2500mm Packed Tower Internals 304 Material Liquid Collector 2500mm Packed Tower Internals 304 Material Liquid Collector

Large Image :  2500mm Packed Tower Internals 304 Material Liquid Collector

Product Details:
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: wooden box, pallet, etc.
Delivery Time: 3-5 working days
Payment Terms: T/T, L/C
Supply Ability: 99 pcs per month

2500mm Packed Tower Internals 304 Material Liquid Collector

Description
Product: Liquid Collector Application: Liquid Collector And Gas Distribution
Material: 304 Service: Custom Design
Vendor Type: Factory Plate Thickness: As Per Design And Order
Diameter: As Per Order Drain Sump: Optional
Flow Rate: As Per Requirement Order Quantity: Any Number
High Light:

2500mm liquid collector

,

packed liquid collector

,

304 material liquid collector



2500 mm packed tower internal 304 material liquid collector





1. Hualai liquid collector:



It works between packing beds. The divice collects liquid flow downwards and re-distributes the liquid averagely. So the liquid collector and re-distributor helps maintain average liquid flow in the tower.



2. Hualai liquid collector brief view:



Tower internal Type vapor distributor & chimney tray
Tower diameter > 1000 mm
Liquid Range 20.5 - 100 m³/h/m²
Support at Shell Support ring and clips for major beams if the diameter is >3000 mm
Construction type Like a chimney tray it is designed in parts to pass through the column manway and to be installed together by welding or bolts and nuts.
Design The distributor is designed to generate a controlled pressure drop through the
chimneys that makes the vapor spreading across the entire section of the column.
Normally the design pressure drop ranges from 10 to 50 mm H2O
Levelling method The operation of this device is not affected by a possible out of levelness of the
support ring
Applications Typical application is below packed beds, to distibute the vapor and collect the liquid
to be drawn-off or redistributed to a lower bed



3. Hualai liquid collector and re-distributor use:



If you need to draw off the liquid partially or totally from some height of the tower, chimney trays are used. But considering the high turbulence velocity of liquid in structured packing, chimney trays are recommended among two structured packing beds. Column internals play very important role in effective mass transfer performance. So they need to be designed carefully for both process and mechanical point. Meanwhile, the engineers put great effort into structured packing and random packing development in the recent years. The column internals include mist eliminators, feed pipes, distributors, re-distributors, support plates, bed limiters, collector trays, etc.



Because the chimney tray frequently maintains a fairly high liquid level ( consequently a tremendous weight ), we shall pay special attention to its design. The first point is the positioning of the drain nozzle. It is a flat chimney tray when the nozzle is at the tray floor level. Or a portion of the tray floor can be made lower than the rest of area to form a sump and then the nozzle to be located at the sump floor. Both designs require the same liquid head to force the design flow rate through the nozzles. We can locate the nozzle in a sump to lower the liquid level on the chimney tray by an amount equal to the head requirement. This reduces the liquid weight supported by the tray, but has little effect on residence time. For low liquid flow, usually a 6 - 12 inch height chimney is enough. And for high liquid flow, a 12 - 18 inch height chimney is used if the drain nozzle is at an inlet sump. There should be hats above all the chimneys by a sufficient space to provide a peripheral area of 1.25 times of the chimney area. If a leak-free design is required, the inlet sump should be seal-welded to the chimney floor, and use gaskets when necessary. The center sump is preferred over a side sump. Because some flow restriction can occur at very high liquid rates due to the shorter weir lengths of side sumps.



4. Hualai is able to provide various kinds of tower internals:



Tower internals play very important role in effective mass transfer performance. So they need to be designed carefully for both process and mechanical point. Meanwhile, our engineers put great effort into structured packing and random packing development in the recent years. The column internals include mist eliminators, feed pipes, distributors, re-distributors, support plates, bed limiters, collector trays, chimney trays etc.



5. Hualai liquid collector production:



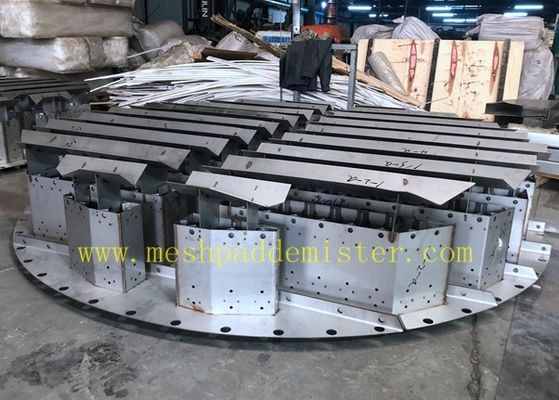

2500mm Packed Tower Internals 304 Material Liquid Collector 0



Welcome your iquiry to Hualai factory!
