Product Details:
|
| Product: | Tail Gas Scrubber Tower Interal 304 Material Water Distributor | Application: | Scrubber Tower |
|---|---|---|---|
| Type: | Gravity Type | Flow Rate: | As Per Requirement |
| Plate Thickness: | 3 Mm, 4 Mm, 5 Mm, 6 Mm, Etc. | Advantage: | Uniform Distribution |
| Design Service: | Yes | Material: | Stainless Steel, Or As Per Order |
| Size: | Any Size As Per Order | Position: | On Top Of Packing |
| High Light: | tail gas scrubber tower internals,tower internals 304 material,water distributor tower internals |
||
Tail gas scrubber tower interal 304 material water distributor
1. Tail gas scrubber tower interal 304 material water distributor,
Liquid distributor is the most important column internal from a process point of view. It is required to distribute liquid uniformly at the top of packing tower. Meanwhile a liquid distributor must have sufficient gas passage area to avoid high pressure drop or liquid entrainment.
2. Choice of Tail gas scrubber tower interal water distributor:
|
Column diameter inches |
System fouling tendency |
Specific liquid load gpm/ft2 |
Suitable type of liquid distributor |
| ＜48 | Low / medium / high | 1 - 30 | Pan type liquid distributor |
| ＞12 | Low / medium | 0.8 - 50 | Deck type liquid distributor with long risers |
| ＞36 | Low / medium / high | 2 - 40 | Weir trough type liquid distributor |
| ＞20 | low | 1.5 - 10 | Pipe arm type liquid distributor |
| all | high | 0.2 - 50 | Spray type liquid distributor |
3. Characteristics of an ideal scrubber tower internal water distributor:
Liquid distributor is the most important column internal from a process point of view. It is required to distribute liquid uniformly at the top of packing tower. Meanwhile a liquid distributor must have sufficient gas passage area to avoid high pressure drop or liquid entrainment.
Uniform liquid distribution; Resistance to fouling; Proper trundown capabitity;Low gas pressure drop; Minimum height; Higher cross-mixing capabity.
3. How to choose tail gas scrubber tower interal water distributor?
When we need to select a liquid distributor, we need to consider the tower diameter, flow rate, turndown ratio, available height (in case of revamp) and fouling resistance.
Weir type gravity distributor:
Generally speaking, the weir type gravity distributor is one of the least troublesome distributors. It has excellent trundown capability and can handle large liquid load. However it can usually provide only a limited number of drip points (minimum 30 number of weirs per m2). It is also extremely sensitive to levelness and liquid surface agitation.
Orifice type gravity distributor:
Usually it shows as pan type, deck type or tunnel (trough) type. An orifice pan distributor consists of a pan. There are circular or rectangular risers for vapor flow and perforation for liquid flow in the pan.
Orifice trough type distributors consist of parallel troughs with perforated holes in the bottom for liquid flow. Vapor rises in the space between the troughs. The troughs are often interconnected by cross channels (called as parting box), which help equalize the liquid level in different troughs. This trough type liquid distributors provide more open area for vapor flow and is easier to support.
Orifice type distributor can be designed to have a large number of drip points to provide superior liquid distribution, though it may suffer from corrosion and plugging. Orifices are sized to maintain a minimum liquid head at desired turndown conditions & to avoid distributor overflow during turn up condition. Very small orifice diameters (<4mm) are avoided to prevent fouling.

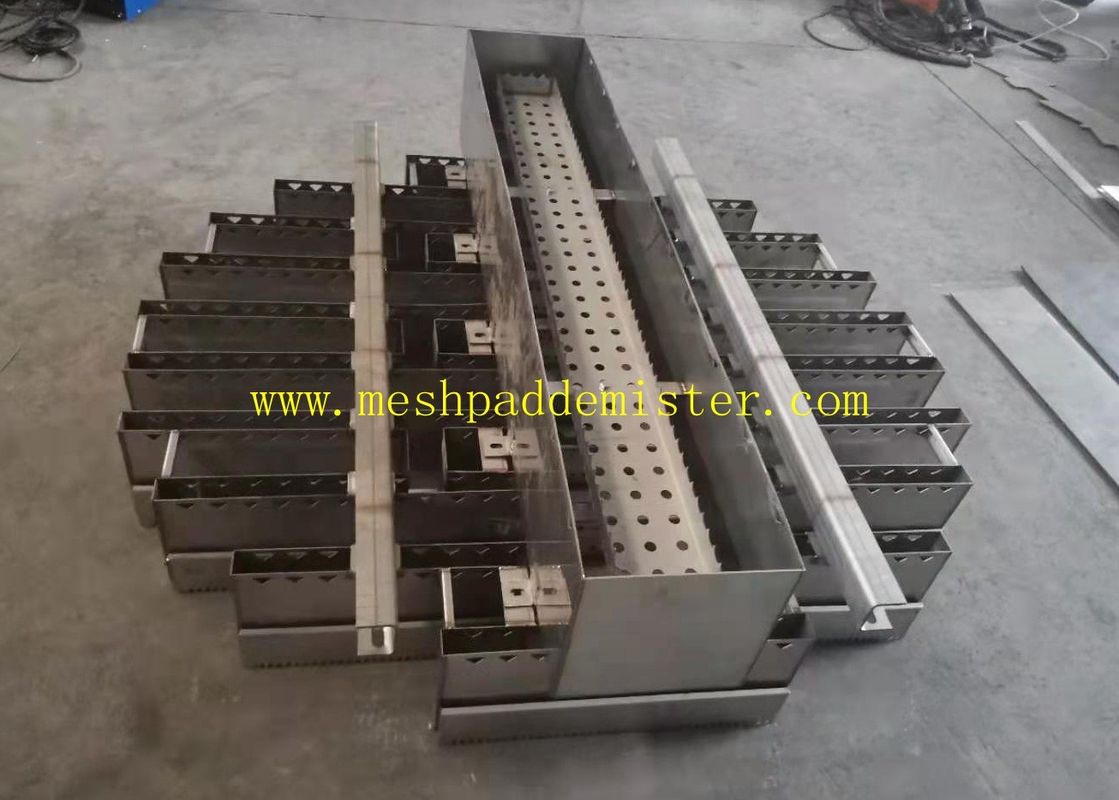

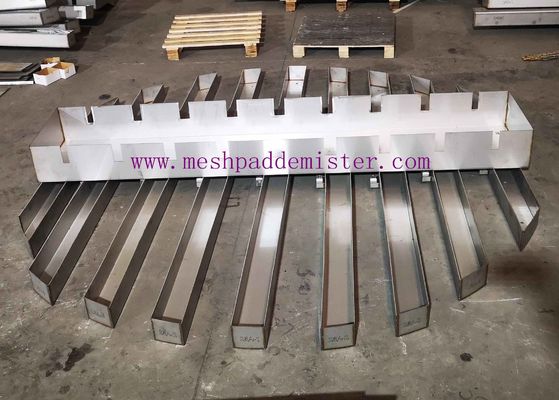

5. Production of tail gas scrubber tower water distributor
Welcome your contact with your private tower internals plan or ideas!
Tel: 15112670997
