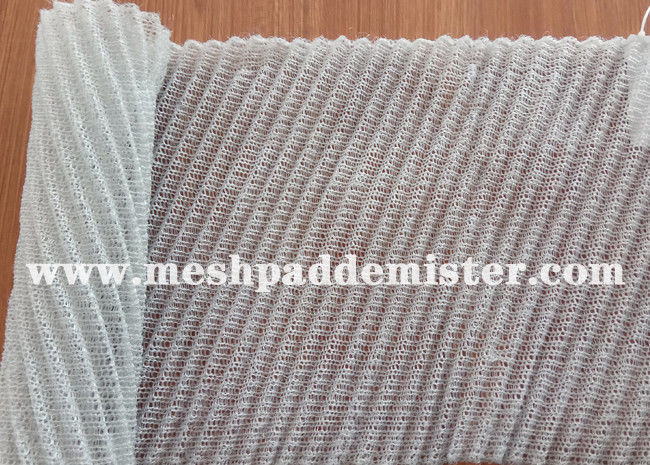

316L + PTFE Corrugated Co 50 Kg / M3 Knitted Wire Mesh

I'm Online Chat Now

316L + PTFE Corrugated Co 50 Kg / M3 Knitted Wire Mesh

316L + PTFE Corrugated Co 50 Kg / M3 Knitted Wire Mesh
316L + PTFE Corrugated Co 50 Kg / M3 Knitted Wire Mesh 316L + PTFE Corrugated Co 50 Kg / M3 Knitted Wire Mesh

Large Image :  316L + PTFE Corrugated Co 50 Kg / M3 Knitted Wire Mesh

Product Details:
Place of Origin: China
Certification: ISO9001-2015
Payment & Shipping Terms:
Minimum Order Quantity: 100 kgs
Price: Negociation
Packaging Details: cartons, pallets, wooden boxes
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 3999 kgs per month

316L + PTFE Corrugated Co 50 Kg / M3 Knitted Wire Mesh

Specific Area: 4000-5000 M2/m3 Width: Specified By Client
Weaving Style: Co-knit Of Metal And Unmetal Material: 316L + PTFE Fiber
Treatment: Corrugation Or None Feature: Corrosion Resistant
High Light:

50 Kg / M3 knitted mesh


50 Kg / M3 knitted wire

316L + PTFE corrugated co-knit wire mesh



Hualai manufactures tons of knitted wire mesh

in crimped rolls each month for customers that need to pack their own separation, filtration, or insulation devices. They are delivered in cartons (for small quantity and urgent need), on pallets (for big quantity and sea shipping) and in wooden boxes (for some special mesh) sometimes. The customers will experience superior quality and materials when using Hualai’s knit mesh products.


In order to find the right co-knit wire mesh,

we should refer to the characteristics of the material when selecting the gas-liquid filter screen, ensure that the selected material is usable, and compare several different materials, choose the best one.


For example, for the gas-liquid filter screen

used for demister, it is better to choose metal wire or metal wire and non-metal wire weaving, and if the ventilation system chooses gas-liquid filter screen, it can use non-metal filter screen.


Firstly, the materials of the co-knit gas-liquid filter screen

can be roughly divided into three categories: metal, non-metal and mixed metal and non-metal wire. Among them, metals include: stainless steel wire, alloy wire, pure titanium wire, Monel, Inconel, galvanized wire, copper wire, brass wire, etc. Nonmetal category includes: polytetrafluoroethylene (PTFE) and polypropylene, etc. The interweaving categories of metal and non-metal wires include: stainless steel mixed with glass fiber, stainless steel mixed with polytetrafluoroethylene, stainless steel mixed with polypropylene, stainless steel mixed with cotton thread, etc.


Secondly, the purpose of selecting the co-knit gas-liquid filter screen

should be clear, for example, selecting whether the gas-liquid filter screen is used to make a mesh demister, or a filter screen for gas-liquid separation, gas-water separation, oil-water separation and other devices, or a shielding device for electronic and electrical products against electromagnetic interference and so on. Different use of gas-liquid filter screen, the choice of materials are also very different.


Hualai knitted wire mesh

may be made from most metals and plastics i.e. SS304, 304L, 316, 316L, 321, 310S, 201, Duplex 2205, 316Ti, 904L, Monel, Nickel, Alloy 20, Copper, P.T.F.E., H.D.P.E., P.P., co-knit of 316L + PTFE, alloy 20 + PTFE, 304+PTFE, 904L + PTFE, 304+glass fiber, 316L + glass fiber, 904L + glass fiber, 316L+PP etc. and other metals, alloys or plastic which can be drawn or extruded.


Demister mesh density and its applications


Mesh density

(stainless steel)

50 kg/m3 Heavy fouling, e.g. evaporators
80 kg/m3 Moderate fouling, e.g. vessel boilers
110 kg/m3 Light fouling
145 kg/m3 Heavy duty, e.g. oil and gas separators
170 kg/m3 General purpose, not totally clean
195 kg/m3 Optimum efficiency & pressure drop
240 kg/m3 High density with high separation efficiency
112 kg/m3 General purpose, clean service
145 kg/m3 Find droplet removal in clean service



Contact us in Hualai today to discuss your needs of knitted wire mesh.
