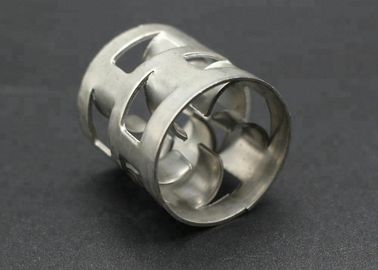

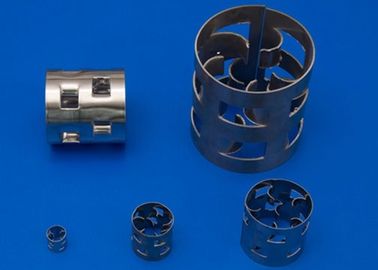

Various Types 6mm - 90mm Custom Size ISO9001 Certification SS Pall Rings

I'm Online Chat Now

Various Types 6mm - 90mm Custom Size ISO9001 Certification SS Pall Rings

Various Types 6mm - 90mm Custom Size ISO9001 Certification SS Pall Rings
Various Types 6mm - 90mm Custom Size ISO9001 Certification SS Pall Rings Various Types 6mm - 90mm Custom Size ISO9001 Certification SS Pall Rings

Large Image :  Various Types 6mm - 90mm Custom Size ISO9001 Certification SS Pall Rings

Product Details:
Place of Origin: China
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 0.01 cubic meters
Price: negociation
Packaging Details: carton, bag, pallet
Delivery Time: 5-9 days
Payment Terms: L/C, T/T
Supply Ability: 99 cubic meters per month

Various Types 6mm - 90mm Custom Size ISO9001 Certification SS Pall Rings

Description
Equal Inch Type: 1in, 2in, 3in, More Options Material: SS316L, Ss304, Ss410, Carbon Steel, Etc.
OEM: Yes Material Certificate: Yes
Wall Thickness: 0.3-1.2mm Custom Size: Yes
High Light:

ss pall rings

,

cascade mini ring

Various Types 6mm - 90mm Custom Size ISO9001 Certification SS Pall Rings


1. SS Pall Ring Introduction:

Pall rings may be the most widely used metal random packings.  There are many tests and experiments done with pall rings, as well as many results or graphics for reference.
When we talk about metal pall rings, we know it is an active market with many users and suppliers. The users are trying to use it in more and more applications effectively. And the factories are improving the production methods and efficiency. Sometimes an innovation comes out of the mutual communication, which has enriched the scope of metal pall rings we usually talk about. For example, except the normal sizes of metal pall rings, we do know there are some new sizes being produced. If they are more suitable to your project than normal sizes in your opinion, we are happy to be able to help with those. Please refer to an enriched specification table below:

2. SS Pall Rings Specification Datasheet:


Diameter
Inch

Dia.*Height
mm

Thickness
mm

Packing No.

Specific Area
m2/m3

Void


F factory
1/4"6*60.3mm400000090588.24%1317
3/8"10*100.3mm76800048393.73%586.1
1/2"13*130.3mm41000043594.34%518.5
5/8"16*160.3-0.4mm14000034493.8-95.53%394.9-417
3/4"19*190.3-0.4mm12000027295.1-96.46%303.3-316.5
1"25*250.3-0.6mm5250020692.17-97.32%230.9-263.3
1.5"38*380.4-1.0mm1520013893.38-97.52%148.7-169.4
2"50*500.5-1.0mm682010794.86-97.54%115.5-125.5
3"76*760.6-1.0mm21507896.25-97.82%83.5-87.5
3.5"89*890.7-1.0mm12206197.09-98%64.5-66.4
















3. SS Pall Ring History:

Pall ring was invented by German BASF in 1940s. It was an improvement of the Raschig ring. The difference for the Pall Ring is the addition of two rows of punched and formed fingers. This adjustment provides a significant performance increase: the capacity and efficiency is improved and the pressure drop is reduced. Finally, the use of pall ring indicates opening pore type packing was accepted by the world gradually.

4. SS Pall Rings advantages against Raschig Rings:

1. Pall rings, have more than 50% higher capacity than raschig ring.
2. The pressure drop is only half of the raschig ring.
3. The relative efficiency is about 30% higher than that of raschig ring.

5. Required data for preparation of SS Pall Rings quotations


Operating data
Gas
name of the gas
gas volume flow (at operating conditions)m³/h
gas density (operating conditions)kg/m³
gas viscositymm²/s (cP)
operating pressurebar (a)
operating temperature°C
Liquid
name of the liquid
liquid contentkg/h
liquid densitykg/m³
viscosity of the liquidcP
surface tensionmN/m
Geometrical data
Pall RingsSize ______mm, thickness_____mm
packing heightmm
column diametermm
Requirements
material
Other






6. SS pall rings in wooden box:


Various Types 6mm - 90mm Custom Size ISO9001 Certification SS Pall Rings 0

Welcome your inquiry with any questions!
