Oil Mist Extraction Device Ss Mesh Pad Demisters Metal Plate Frame With Drain Hole

Oil Mist Extraction Device Ss Mesh Pad Demisters Metal Plate Frame With Drain Hole
Oil Mist Extraction Device Ss Mesh Pad Demisters Metal Plate Frame With Drain Hole Oil Mist Extraction Device Ss Mesh Pad Demisters Metal Plate Frame With Drain Hole

Large Image :  Oil Mist Extraction Device Ss Mesh Pad Demisters Metal Plate Frame With Drain Hole

Product Details:
Place of Origin: China
Certification: ISO9001-2015
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 999 pcs per month

Oil Mist Extraction Device Ss Mesh Pad Demisters Metal Plate Frame With Drain Hole

Description
Size: 1250mm*600mm Product Name: Air Filter Demister
Material: SS304 Frame: Metal Plate
Application: Ventilation System Sections: No Sections; Whole
High Light:

oil mist eliminator

,

wire mesh demister pad



Oil Mist Extraction Device Ss Mesh Pad Demisters Metal Plate Frame With Drain Hole





Oil Mist Extraction Device Ss Mesh Pad Demisters Metal Plate Frame With Drain Hole

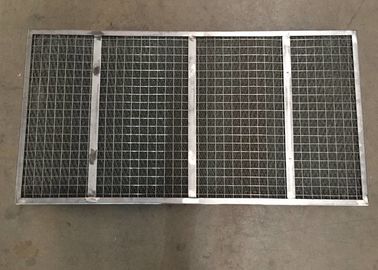

In this case, the mesh pad demisters are going to be used in air cleaning system for a workshop. The frame structure are special designed for easy replacement and maintenance. The screen grids can be crimped mesh, welded mesh, and expanded mesh, also. It is usually in the same stainless steel material.

Wire Mesh Demister Pad Specifications in this case





Item Value Unit
Material SS304 /
Shape & Size 1250*600 mm
Mesh Thickness 80 mm
Demsiter Height 80 mm
Wire Diameter 0.23 mm
Mesh Density 130 kg/m3
Void Fraction 0.984 /
Specific Area 285 m2/m3
Grids screen mesh +
bending plate
mm


Mesh pad demister Efficiency:

When properly designed demister pads can give efficiency up to 99.9% with minimal pressure drop. Normally demister pads can remove droplets down to 5 microns and lower with a free volume of up to 99% and a surface area of up to 1940 m2/m3. Due to high value of free volume the pressure drop across the demister pad is sufficiently low in most applications.

Hualai Mesh pad mist eliminator benefits:


Optimized solutions

Standard configurations

Tailored made configurations

Expedited services available

knowledge and engineering experience

High quality manufacturing standards and procedures

Manufactured in a variety of corrosion resistant materials (Metals, Plastics and Co-knit mesh options)



Material of construction and its application:



Materials Main Application Area
SS304 Water solutions, Nitric acid reduced crude petroleum fraction etc.
SS316L Fatty acid reduced crude containing naphthenic acids and corrosive chemicals
Synthetic fiber For corrosive service at moderate temperature
PP(Polypropylene) For corrosive service at temperature up to 70℃
PTFE For corrosive service at temperature of (-190℃, 250℃)
Monel Caustic soda, dilute acid
Nickel Caustic Soda, food products
Copper Freon, alcohol
Aluminium Nitric Acid


Material used in demister pad construction

Located in Anping, China, we enjoy many advantages like convenient material purchasing, lower labor cost, faster courier service, etc.

Demister Material we usually use: PP, PTFE, SS304, SS304L, SS316, SS316L, SS201, SS202, SS301S, SS321, Copper, Nickel, Titanium, Duplex 2205, Duplex 2507, NS-80, Monel 400 alloy, Co-knit 904L+fiber glass, Co-knit 316L+ fiber glass, Co-knit 316L+PP flat...

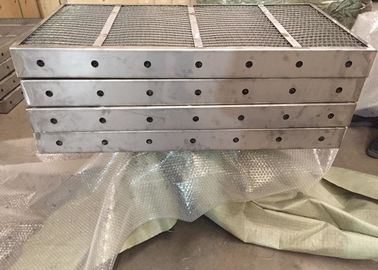

Package & shipping of wire mesh demister pad with frame:

Oil Mist Extraction Device Ss Mesh Pad Demisters Metal Plate Frame With Drain Hole 0

Welcome your inquiry with any questions! Here in Hualai we are always ready to be helpful!
