|Material:||SS316L||Surface Area:||350 M2|
|Height:||100mm Each Layer||Size:||140mm In Diameter|
|OEM:||Available||Surface Treatment:||Perforation, Corrugation|
structure packing in distillation

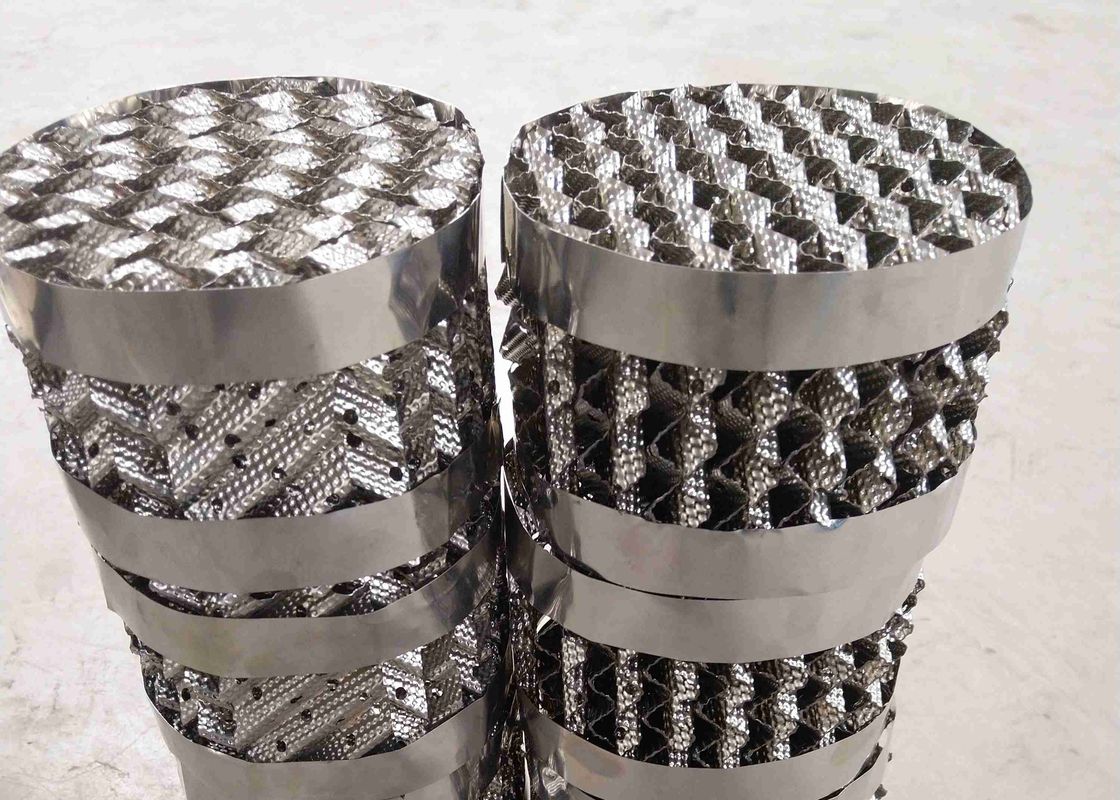

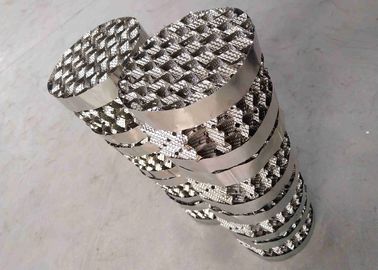

Lab Structured Packing 350Y Type Stainless Steel 140mm In Diameter
Hualai structured packing uses the industry standard corrugated perforated and embossed sheet metal design to provide efficient vapour-liquid contact. The style of the embossed surface has been optimised to provide maximum wetability and numerous perforations enhance cross mixing of the process fluids. Type Y has a crimp angle of 45° and type X 30°. Suitable liquid irrigation range from below 0.5 up to 200 m3/m2.hr.
Hualai structured packing products list (part):
|Types of packing||Specific Surface||Void Fraction||Application|
|Wire gauze 500X||500||98.8%||
head pressure < 300 mbar
|Wire gauze 700Y||700||98.4%|
|Metal sheet 125X/Y||125||99.5%||High liquid and gas load|
|Metal sheet 250X/Y||250||98.8%||Standard|
|Metal sheet 350X/Y||350||98.3%||Higher NTSM at lower capacity|
|Metal sheet 500X/Y||500||97.7%||High NTSM|
|Metal sheet 700X/Y||700||97.0%|
350Y corrugated perforated packing is one main type of Hualai structured packings made of metal sheets. The punched and grooved surface structure provides ideal contact between gas and liquid flow.
Hualai has years of engineering experience with a variety of structured column packings in different industrial applications. Moreover, we have frequent co-operations with famous universities and technical engineering companies in China.
Resulting from these valuable assets, we have produced range of structured packings suitable for engineering systems that provide optimum column performance.
For improved performance in new and existing towers. The uniform arrangement of structured packing provides many advantages compared to random packing or fractionation trays. Using structured packing can provide:
Reduced liquid hold-up
Excellent liquid spreading characteristics
Lower pressure drop through the column
Higher efficiency in the same tower height
Welcome your inquiry about Hualai structured packing any time!
