Product Details:
|
| Material: | Stainless Steel | Wire Diameter: | 0.23mm, 0.25mm, 0.28mm, Etc. |
|---|---|---|---|
| Weaving Style: | Single Wire Knitting | Width: | 100mm / 150mm |
| Treatment: | Corrugation Or None | Application: | Filter Element |
| High Light: | stainless steel knitted wire mesh,demister pad |
||

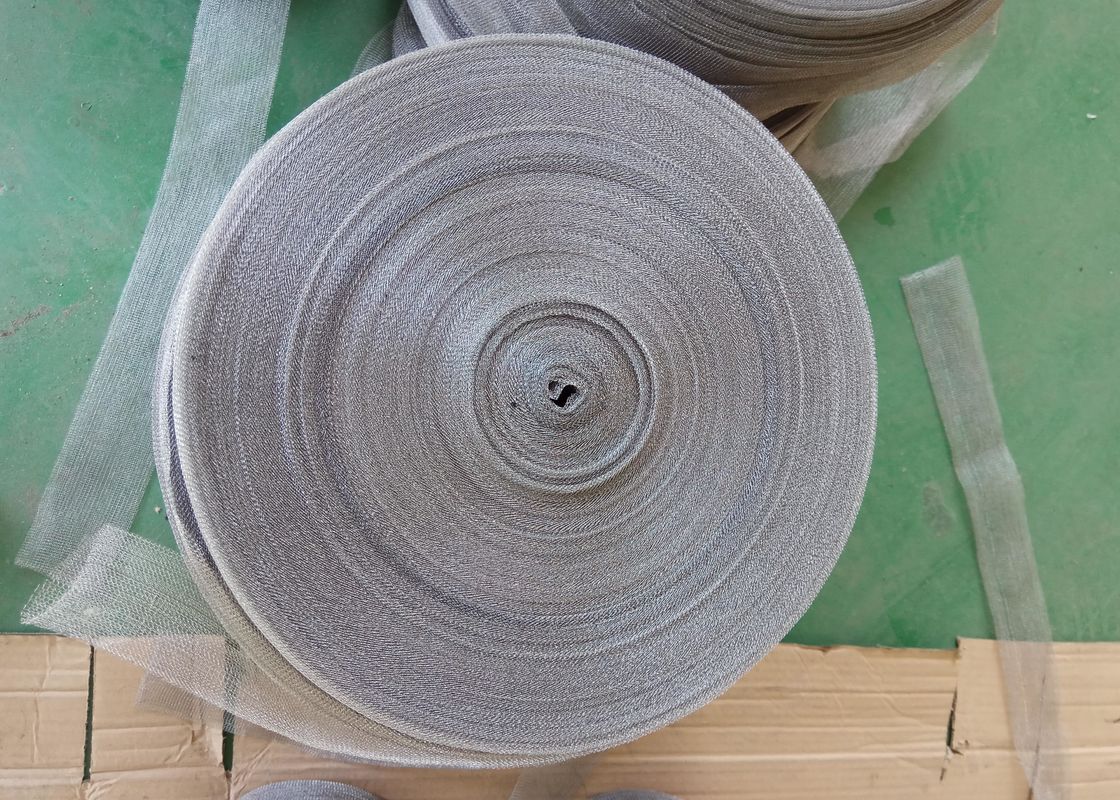

Hualai Knitted Wire Mesh In - Demand 100mm 150mm Width Stainless Steel Tube Net
Hualai manufactures tons of knitted wire mesh in crimped rolls each month for customers that need to pack their own separation, filtration, or insulation devices. They are delivered in cartons (for small quantity and urgent need), on pallets (for big quantity and sea shipping) and in wooden boxes (for some special mesh) sometimes. The customers will experience superior quality and materials when using Hualai’s knit mesh products.
Because of the knitted, interlocking loop structure of knit wire mesh, there is at least a two-way strength with the needed movement to work the material around complex curves and irregular surfaces. The knitting mesh will not come apart and will stay intact over time, with continuous handling or constant vibration. The knitting mesh is also lower in price than many other materials. It can retain its strength even under high heat temperatures. When greater strength is needed because of frequent removal or stress, or when extreme temperatures are reached and oxidation or atmospheric conditions are critical, 0.28mm (0.011 inch) wire is usually applied.
Material of knitted wire mesh and its application:
| Materials | Main Application Area |
| SS304 | Water solutions, Nitric acid reduced crude petroleum fraction etc. |
| SS316L | Fatty acid reduced crude containing naphthenic acids and corrosive chemicals |
| Synthetic fiber | For corrosive service at moderate temperature |
| PP(Polypropylene) | For corrosive service at temperature up to 70℃ |
| PTFE | For corrosive service at temperature of (-190℃, 250℃) |
| Monel | Caustic soda, dilute acid |
| Nickel | Caustic Soda, food products |
| Copper | Freon, alcohol |
| Aluminium | Nitric Acid |
Hualai factory keeps a dynamic stock of knitted wire mesh in many materials and types, some are in large quantity and available for fast delivery. Meanwhile we can manufacture many other exotic alloys and specialty wire diameters as per order. Among these types, knitted copper mesh is one of our best selling products, which is well known as pest control copper mesh. It is also often needed to clean extrusion equipment, molds, dies, screws and similar machinery, especially where product purity requires frequent maintenance as it will not scratch or damage parts, splinter, rust or contaminate the end products.
The knitted wire mesh material we have in stock.
PP, PTFE, SS304, SS304L, SS316, SS316L, SS201, SS202, SS310S, SS321, Copper, Nickel, Titanium, Duplex 2205, Duplex 2507, NS-80, Monel 400 alloy, Co-knit 904L+fiber glass, Co-knit 316L+ fiber glass, Co-knit 316L+PP flat...
Also we can handle other materials, but please specify when ordering.
Contact An Li in Hualai today to discuss your needs of knitted wire mesh.
Hualai is a 11 years’ factory producing knitted wire mesh, demister pad, mist eliminator, structured packing and metal random packing. Various types and materials are available. Custom is welcome. We are glad to help with what you need. Expecting to be your partner!
