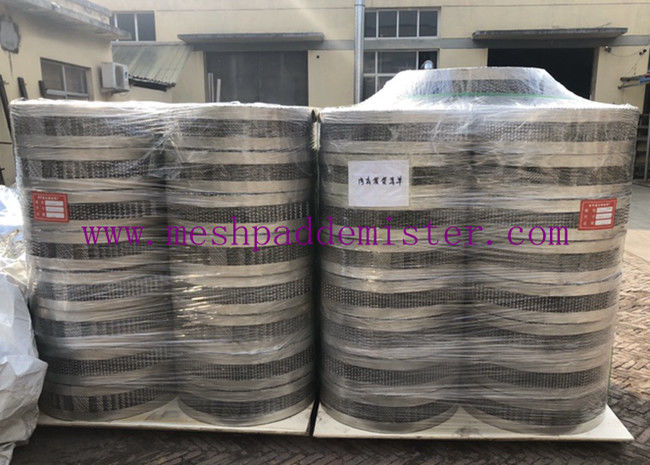

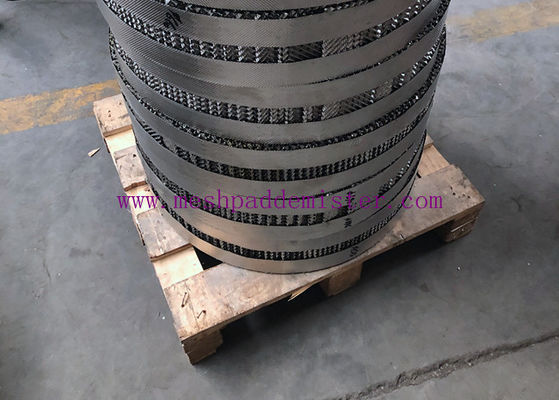

3.5y Aisi 304 Metal Plate Structured Distillation Packing 486mm Diameter

3.5y Aisi 304 Metal Plate Structured  Distillation Packing 486mm Diameter
3.5y Aisi 304 Metal Plate Structured  Distillation Packing 486mm Diameter 3.5y Aisi 304 Metal Plate Structured  Distillation Packing 486mm Diameter

Large Image :  3.5y Aisi 304 Metal Plate Structured Distillation Packing 486mm Diameter

Product Details:
Place of Origin: China
Certification: ISO-9001
Payment & Shipping Terms:
Minimum Order Quantity: 0.1 cubic meter
Price: negotiation
Packaging Details: pallets, wooden box
Delivery Time: 3-5 days
Payment Terms: T/T, L/C
Supply Ability: 200 m3/week

3.5y Aisi 304 Metal Plate Structured Distillation Packing 486mm Diameter

Description
Specific Area: 80 Material: SS304, SS316L
Packing Layer Height: 100mm, 150mm, 200mm Plate Thickness: 0.1mm, 0.12mm, 0.15mm
Shape: Customized Size: As Per Order
High Light:

3.5y Distillation Packing

,

486mm Diameter Distillation Packing

,

3.5y structured packing



3.5Y AISI 304 metal plate structured packing 486 mm in diameter



1.  Manufacturing requirements of Hualai metal plate structured packing



1.1 According to the requirements, punching, rolling fine grain (or rolling grain equivalent to fine grain) and corrugation of raw stainless steel belt shall be made into corrugation belt of orifice plate, and then the corrugation plate shall be cut into pieces according to different chord length on the cross section of packing plate and the requirements of packing plate assembly or block assembly.

1.2 The packing plate is composed of a number of corrugated plates arranged vertically and evenly. The corrugation angle of the two adjacent orifice plates is overlapped in the opposite direction.



2. Performance index of tray column and packed tower





Tower Type

performance index

tray tower Random packing tower Structured packing tower

Allowable load factor F

0.3-2.44 0.3-2.93 0.12-4.4
Pressure drop per theoretical stage / Pa 400-1067 120-240 1.3-106.7
HETP / m 0.6-1.2 0.45-1.5 0.1-0.75



3. Structural dimension and characteristic parameters of stainless steel orifice corrugated packing.



Item Unit 125X 125Y 250X 250Y 350X 350Y 500X 500Y
corrugation height h mm 24.0 11.5 8.4 6.0
corrugation inclination θ (°) 30 45 30 45 30 45 30 45
corrugation distance 2B mm 39.6 19.0 14.0 9.9
corrugation angle β (°) 79.0 79.1 79.6 79.0
void fraction ε δ=0.15mm % 99.4 98.6 98.0 97.2
δ=0.12mm % 99.5 98.9 98.4 97.8
δ=0.10mm % 99.6 99.1 98.7 98.2
Perforated hole diameter d0 mm 4.5 4.5 4.0 4.0
Opening rate σ % 8.5-9.5 8.5-9.5 9.0-10.0 9.0-10.0
radius of curvature of the top circle of corrugation angle R mm ≤2.0 ≤1.4 ≤0.9 ≤0.5

Note: The influence of opening rate on the plate is not calculated



4. What is the role of structured packing in high vacuum distillation column?



Distillation is a method to separate liquid mixture with high purity by using reflux. It is a widely used liquid mixture separation operation in industry, and is widely used in petroleum, chemical, light industry, food, metallurgy and other departments. Distillation operation is classified according to different methods. According to the operation mode, it can be divided into continuous distillation and batch distillation; according to the composition of the mixture, it can be divided into binary distillation and multi-component distillation; according to whether the additives affecting the vapor-liquid equilibrium are added to the mixture, it can be divided into ordinary distillation and special distillation (including extractive distillation, azeotropic distillation and salt-adding distillation); if the distillation process is accompanied by distillation, it can be divided into two types Chemical reaction is called reactive distillation
In the operation of packed tower, the liquid drops from top to bottom along the structured packing surface, and the rising vapor contacts with each other. Therefore, the packing surface is the place for mass exchange and heat exchange.



3.5y Aisi 304 Metal Plate Structured  Distillation Packing 486mm Diameter 0



In Hualai, every year we manufacture and supply hundreds of cubic meters of metal structured packing in different models. There are many popular types and materials for option. Custom order is welcome, too! We are happy to help with what you need!
