CY700 SS316L Wire Mesh Packing In Pharmaceutical Tower Equipment

CY700 SS316L Wire Mesh Packing In Pharmaceutical Tower Equipment
CY700 SS316L Wire Mesh Packing In Pharmaceutical Tower Equipment CY700 SS316L Wire Mesh Packing In Pharmaceutical Tower Equipment

Large Image :  CY700 SS316L Wire Mesh Packing In Pharmaceutical Tower Equipment

Product Details:
Place of Origin: Hengshui
Brand Name: Hualai
Certification: ISO9001
Model Number: 700Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: wooden box, pallet
Delivery Time: 3-5 days
Payment Terms: T/T, L/C
Supply Ability: 300 cubic meters per month

CY700 SS316L Wire Mesh Packing In Pharmaceutical Tower Equipment

Description
Material: SS316L Packing Layer Height: 100, 150, 200mm
Package: Pallet, Or Wooden Box Shape: Round Or As Per Order
OEM Service: Available Size: As Per Order
High Light:

700Y wire mesh packing

,

SS316L wire mesh packing

,

100MM wire mesh structured packing

Wire mesh packing CY700 SS316L in pharmaceutical tower equipment



1. Hualai factory of wire mesh packing supply range:



For wire mesh packing, we purchase the material fast from nearby; we produce it fast with several plant lines; we ship it fast from near Tianjin Port. In Hualai factory, we produce and supply wire mesh structured packing / wire gauze tower packing. The material available includes ss304, ss316L, Titanium, copper, etc.. We can make most of the popular types of wire gauze packing, like 250Y, 500X, 700Y, etc. The shape and size can be customized as per order. So as the packing layer height. If needed, the wire size can be customized, too. Welcome your inquiry!



2. Characteristics and application of structured packing,


① Through regular arrangement of components, uniform and regular gas-liquid flow channel is formed, so that gas-liquid contact in an orderly manner, so as to strengthen mass transfer, reduce amplification effect, reduce gas flow pressure drop and low liquid holding capacity. It is especially suitable for vacuum distillation of heat sensitive materials.
② According to the test, the performance of structured packing is better than that of bulk packing and tray under FP = 0.3 (vacuum, atmospheric distillation and absorption process with less liquid).

③ The absorption performance of structured packing is well controlled.
④ The treatment of foaming materials with structured packing is better than that of bulk packing or tray.

⑤ For all kinds of structured packing made of metal mesh and thin plate (thickness 0.1-0.2mm), the service life is short in corrosive medium, while the regular packing made of plastic mesh, plate and ceramic plate is corrosion-resistant.

⑥ Regular packing is more difficult to load and unload than bulk packing. It is easy to be damaged and not easy to clean.



3. Hualali wire mesh packing data sheet:



Type Specific Surface Void Ratio ΔP Liquid spray density Liquid holdup Theo. Plate F factor Application
(m2/m3) (%) (Pa/plate) (m3/m2*h) % (piece/m) (m/s)*(kg/m3)0.5
250(Y) 250 98.5 10-40 0.2-12 2 2.5-3 2.5-3.5 Precision distillation with few theoretical series
500(BX) 500 96.9 50 0.2-12 4.2 4-5 2.0-2.4 Vacuum Distillation of Thermosensitive and Difficult Separation Systems
700(CY) 700 95.6 67 0.2-12 6 8-10 1.5-2.0 Isotopic mixture, isomeric mixture separation

4. Design of packing tower internals

Whether the packing can meet the expected performance is important. For example, the improper design of the distributor will seriously affect the mass transfer efficiency of the packing, and the improper design of the packing support will make the packing layer flooding ahead of time and affect its production capacity.
The design of internals in packed tower generally includes: liquid distributor, redistributor, packing support, packing plate and bed limiter, gas inlet distributor, demister and other components.

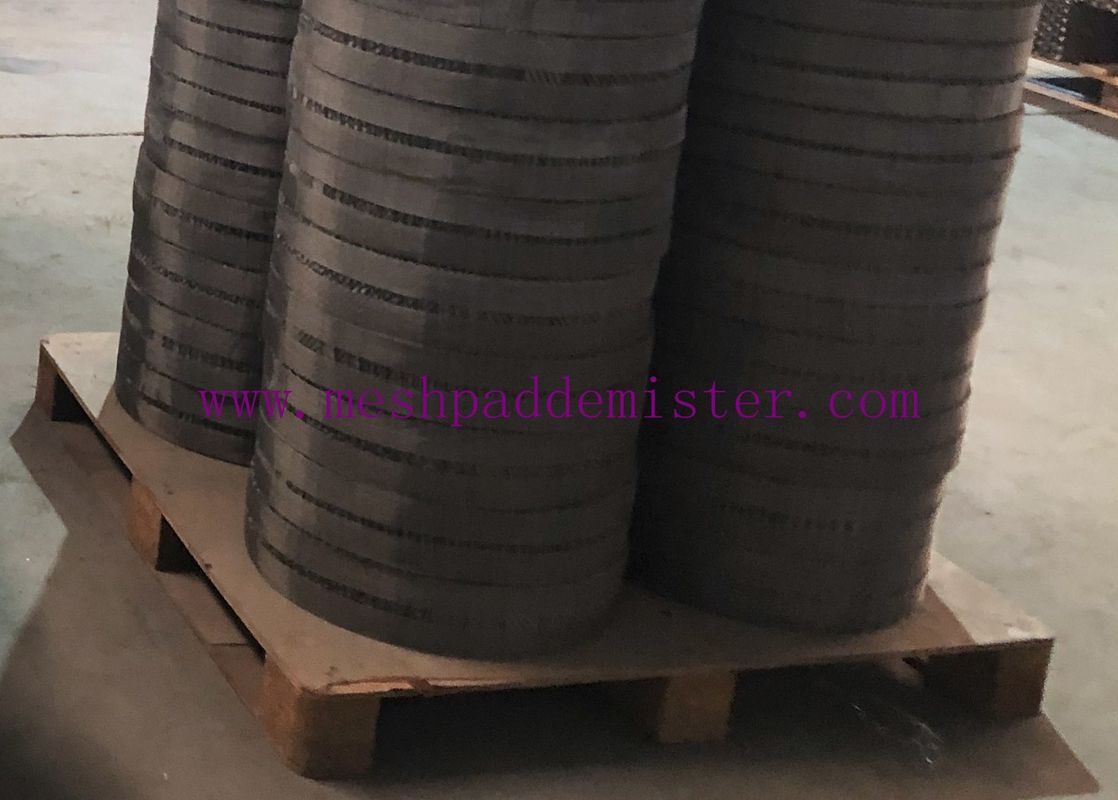

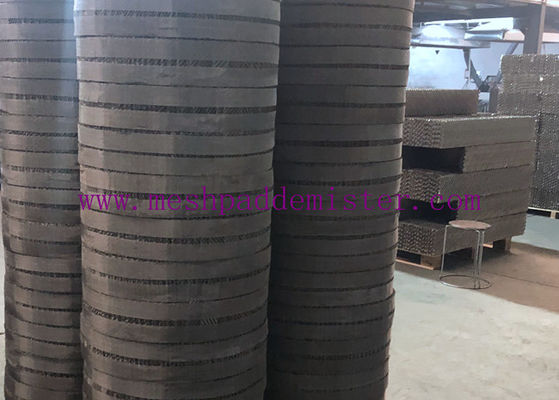

5. Hualai wire mesh packing gallery.

CY700 SS316L Wire Mesh Packing In Pharmaceutical Tower Equipment 0

Warmly welcome your inquiry!
